Airman

AX20U

Mini Excavator

Operating Weight
4,387 lb
Max Digging Depth
94 in
Net Power
18.8 hp
All mini excavators

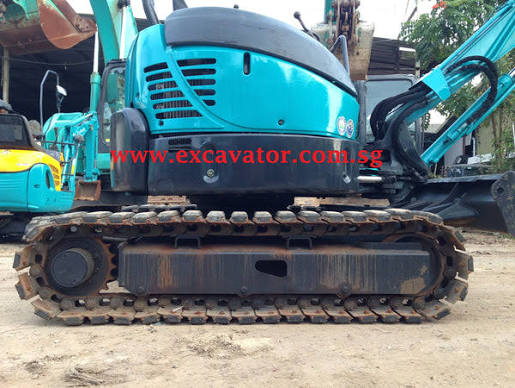

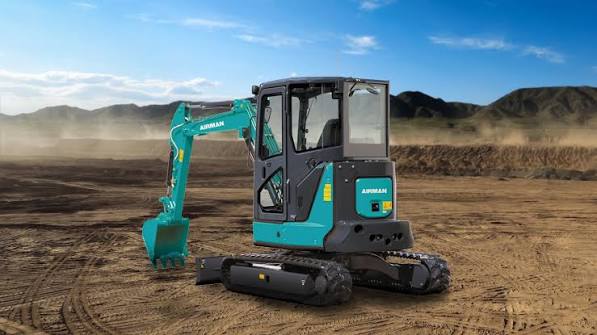

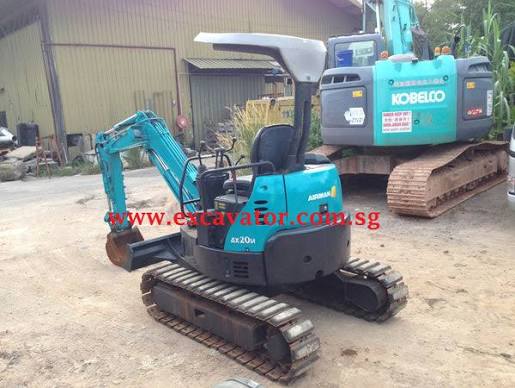

Airman AX20U Mini Excavator
1 / 5
Image 1 of 5
Image: plsmachinery.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,387 lb
Hydraulic Pump Flow Capacity14.6 gal/min
Hydraulic System Relief Valve Pressure3,046 psi

Engine

Engine specifications
Engine Model3YE1
Displacement183 in³
Power Measured @2,200 rpm
Net Power18.8 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance12 in
Length of Track on Ground57 in
Tail Swing Radius28 in
Width to Outside of Tracks57 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.9 mph
Shoe Size10 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth94 in
Max Reach Along Ground166 in
Max Vertical Wall Digging Depth76 in
Max Loading Height113 in
Shipping Length of Unit152 in
Shipping Height of Unit94 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
