Airman

AX27U

Mini Excavator

Operating Weight
6,173 lb
Max Digging Depth
103 in
Net Power
26.5 hp
All mini excavators

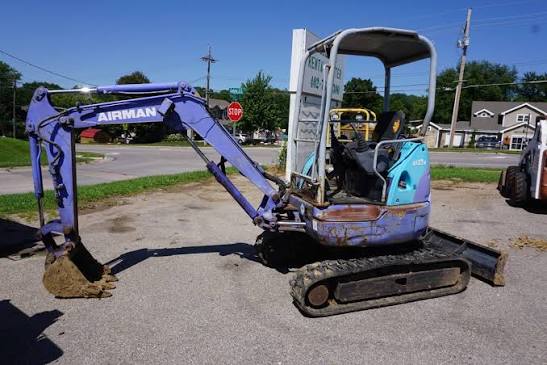

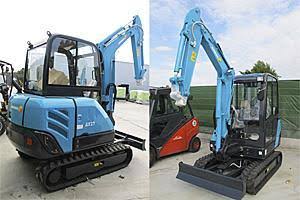

Airman AX27U Mini Excavator
1 / 5
Image 1 of 5
Image: airman.co.jp

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,173 lb
Hydraulic Pump Flow Capacity15.6 gal/min
Hydraulic System Relief Valve Pressure3,626 psi

Engine

Engine specifications
Displacement100 in³
Power Measured @2,200 rpm
Net Power26.5 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance13 in
Length of Track on Ground78 in
Tail Swing Radius31 in
Width to Outside of Tracks61 in

Undercarriage

Undercarriage specifications
Max Travel Speed1.7 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth103 in
Max Reach Along Ground179 in
Max Vertical Wall Digging Depth88 in
Max Loading Height127 in
Shipping Length of Unit166 in
Shipping Height of Unit97 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
