Ammann

ASC70HDPD

Padfoot Compactor

Operating Weight
16,678 lb
Max Speed
7.5 mph
Drum Width
66 in
All padfoot compactors

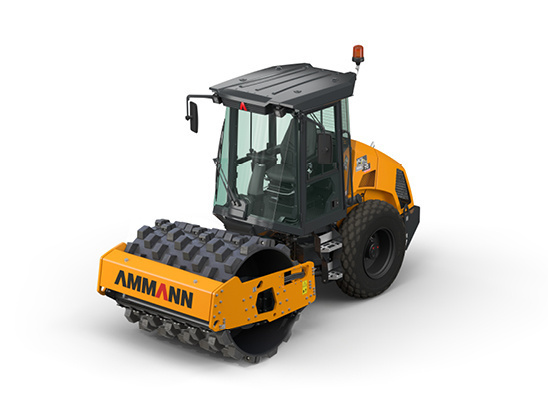

Ammann ASC70HDPD Padfoot Compactor
1 / 5
Image 1 of 5
Image: ammann.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,678 lb
Max Speed7.5 mph
Fuel Capacity72.7 gal

Engine

Engine specifications
Engine ModelB4.5-C99
Net Power101.0 hp

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab88 in
Wheelbase8 in
Width Over Tires74 in
Overall Length w/o Blade205 in

Tires & Wheels

Tires & Wheels specifications
Tires14.9 - 24

Drum

Drum specifications
Drum Width66 in
Vibration Frequency 130 vpm
Centrifugal Force - High29,225 lb
Drum Diameter49 in
Nominal Amplitude - High0 in
Pad Height3 in
Number of Pads104
Centrifugal Force - Low32,597 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 240 vpm
Pad Surface Area18 in³
