Ammann

ASC90D

Smooth Drum Roller

Operating Weight
19,445 lb
Max Speed
6.9 mph
Drum Width
66 in
All smooth drum rollers

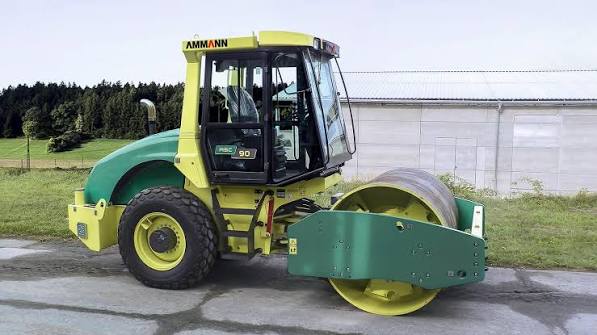

Ammann ASC90D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: ammann.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight19,445 lb
Max Speed6.9 mph
Fuel Capacity72.7 gal

Engine

Engine specifications
Engine ModelB4.5-C99
Net Power101.0 hp

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab114 in
Wheelbase8 in
Overall Length17 in
Overall Width77 in
Drum Diameter - Front52 in

Tires & Wheels

Tires & Wheels specifications
Tires14.9-24

Drum

Drum specifications
Drum Width66 in
Drum Diameter51 in
Vibration Frequency 130 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High32,597 lb
Vibration Frequency 240 vpm
Static Linear Load15 lb-ft
Centrifugal Force - Low35,969 lb
Nominal Amplitude - Low0 in
