Ammann

ASC90HDPD

Padfoot Compactor

Operating Weight
19,456 lb
Max Speed
6.9 mph
Drum Width
66 in
All padfoot compactors

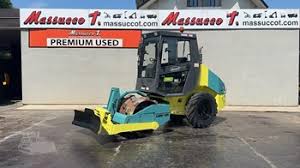

Ammann ASC90HDPD Padfoot Compactor
1 / 5
Image 1 of 5
Image: ammann.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight19,456 lb
Max Speed6.9 mph
Fuel Capacity72.7 gal

Engine

Engine specifications
Engine ModelB4.5-C99
Net Power101.0 hp

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab114 in
Wheelbase8 in
Width Over Tires77 in
Overall Length w/o Blade205 in

Tires & Wheels

Tires & Wheels specifications
Tires14.9-24

Drum

Drum specifications
Drum Width66 in
Vibration Frequency 130 vpm
Centrifugal Force - High32,597 lb
Drum Diameter49 in
Nominal Amplitude - High0 in
Pad Height3 in
Number of Pads104
Centrifugal Force - Low35,969 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 240 vpm
Pad Surface Area18 in³
