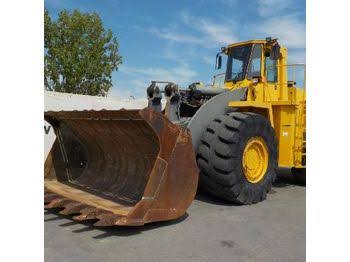

Belaz
Michigan
L320
Wheel Loader
45 specifications
1 / 5
Image 1 of 5
Specifications
16 data points
Operating Specifications
| Operating Weight | 116,845 lb |
|---|---|
| Fuel Capacity | 199.5 gal |
| Tire Size | 35/65-33 |
| Static Tipping Weight | 22,046 lb |
Engine
| Engine Model | 4045TF250 |
|---|---|
| Net Power | 489.5 hp |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 159 in |
| Wheelbase | 158 in |
| Reach at Max Lift and Dump | 88 in |
| Length with Bucket on Ground | 458 in |
Transmission
| Transmission Type | hydro mechanical countershaft |
|---|
Bucket
| Bucket Capacity - heaped | 7.90 yd³ |
|---|---|
| Dump Clearance at Max Raise | 159 in |
| Breakout Force | 74,187 lb |
| Bucket Width | 149 in |
