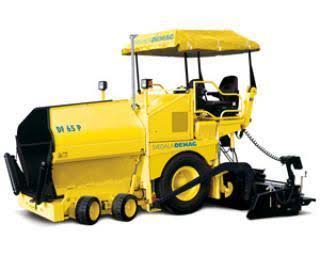

Svedala
DF65P
Asphalt Paver
16 specifications

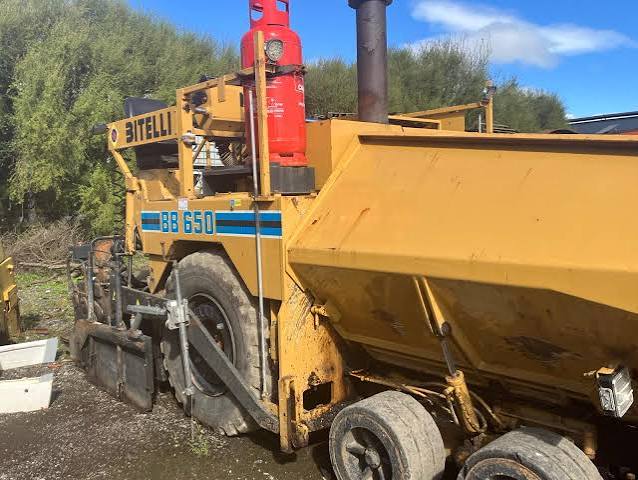

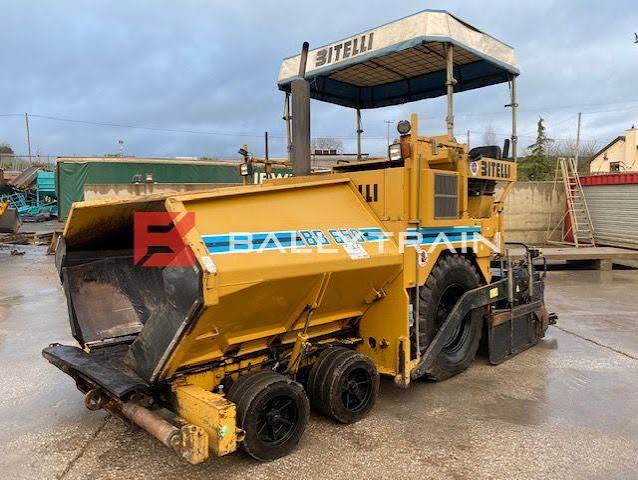

Bitelli
BB650
- Operating Weight w/ Screed
- 30,644 lb
- Paving Width - max
- 236 in
- Gross Power
- 92.5 hp
- Length w/ Screed
- 217 in
1 / 5
Image 1 of 5
Specifications
14 data points
Operating Specifications
| Operating Weight w/ Screed | 30,644 lb |
|---|---|
| Operating Weight w/o Screed | 24,361 lb |
| Fuel Capacity | 30.4 gal |
| Hydraulic System Fluid Capacity | 50.2 gal |
Engine
| Engine Model | F5L 912 |
|---|---|
| Gross Power | 92.5 hp |
Dimensions
| Transport Width | 100 in |
|---|---|
| Transport Height | 154 in |
| Length w/ Screed | 217 in |
| Width w/ Hopper Open | 126 in |
Hopper/Paver
| Paving Width - max | 236 in |
|---|---|
| Paving Speed - max | 2.2 mph |
| Hopper Capacity | 7 lb |
| Travel Speed - max | 8.7 mph |
