Caterpillar
Dynapac
F5CS
Asphalt Paver
17 specifications
1 / 5
Image 1 of 5
Specifications
14 data points
Operating Specifications
| Operating Weight w/o Screed | 19,370 lb |
|---|---|
| Fuel Capacity | 50.0 gal |
| Hydraulic System Fluid Capacity | 47.1 gal |
| Cooling System Fluid Capacity | 5.1 gal |
Engine
| Engine Model | 3054DIT |
|---|---|
| Displacement | 244 in³ |
| Gross Power | 107.0 hp |
Dimensions
| Transport Width | 100 in |
|---|---|
| Tire Size | 12x22 Solid Rubber 14x24 |
| Length w/ Screed | 230 in |
Hopper/Paver
| Paving Width - max | 193 in |
|---|---|
| Paving Speed - max | 3.1 mph |
| Travel Speed - max | 13.5 mph |
| Auger Diameter | 14 in |

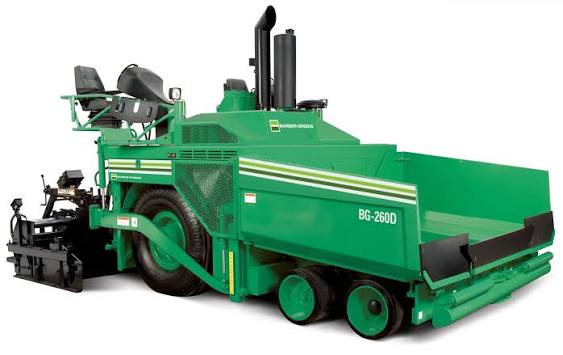

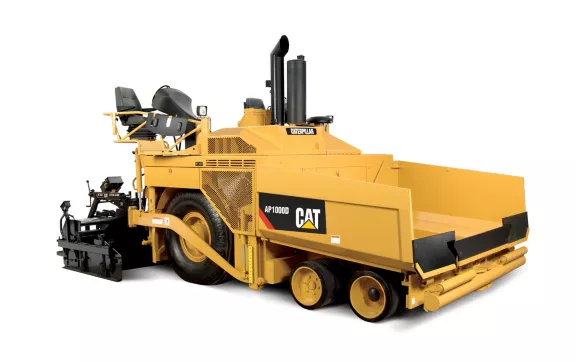

Comparable machines
