Bobcat

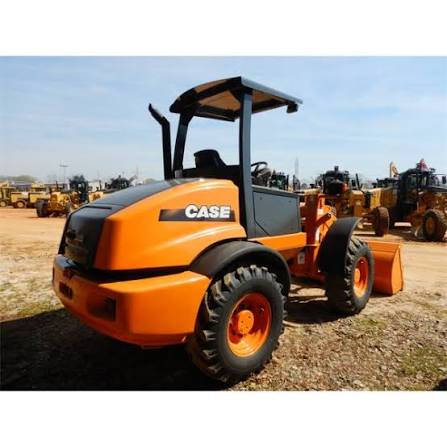

Case
21D
Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight | 9,400 lb |
|---|---|
| Tire Size | 12x16.5 |
| Static Tipping Weight | 5,517 lb |
Engine
| Engine Model | 4.236 |
|---|---|
| Displacement | 236 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 74.0 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 24.5 gal/min |
|---|---|
| Relief Valve Setting | 2,500 psi |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 96 in |
| Wheelbase | 71 in |
| Reach at Max Lift and Dump | 29 in |
| Length with Bucket on Ground | 159 in |
| Hinge Pin - Max Height | 124 in |
Transmission
| Max Speed - Forward | 14.5 mph |
|---|---|
| Max Speed - Reverse | 5.5 mph |
| Transmission Type | Hydrostatic |
Bucket
| Bucket Width | 71 in |
|---|
