Bobcat

331

Mini Excavator

Operating Weight
7,185 lb
Max Digging Depth
1,465 in
Net Power
40.0 hp
All mini excavators

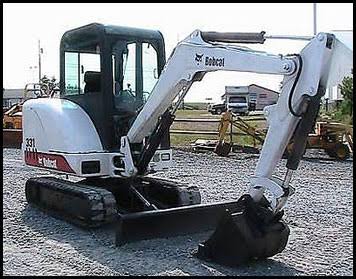

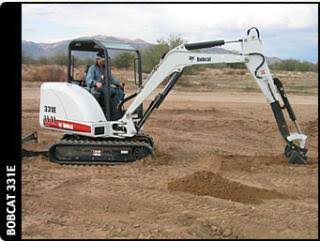

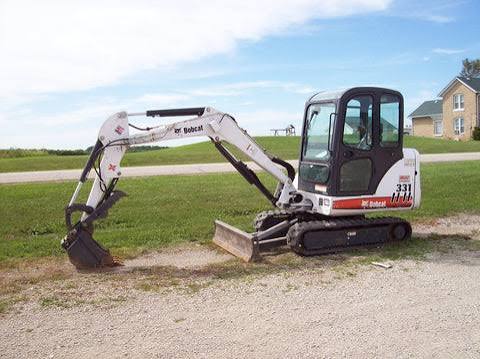

Bobcat 331 Mini Excavator
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,185 lb
Fuel Capacity15.3 gal
Hydraulic Pump Flow Capacity24.1 gal/min

Engine

Engine specifications
Engine ModelV-2203-M-DI-E2B
Displacement134 in³
Power Measured @2,400 rpm
Net Power40.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab94 in
Length of Track on Ground62 in
Tail Swing Radius55 in
Width to Outside of Tracks61 in
Removal Counterweight Clearance20 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge49 in
Max Travel Speed3.2 mph
Shoe Size13 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth1,465 in
Max Reach Along Ground2,303 in
Max Vertical Wall Digging Depth88 in
Max Loading Height122 in
Shipping Length of Unit193 in
Max Cutting Height179 in
Shipping Height of Unit94 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Long Arm Option

Long Arm Option specifications
Operating Weight (Long Arm)7,538 lb
Max Digging Depth (Long Arm)1,608 in
Hydraulic Pump Flow Capacity (Long Arm)16.4 gal/min
Max Reach Along Ground (Long Arm)2,441 in
Max Cutting Height (Long Arm)121 in
