Bobcat

334

Mini Excavator

Operating Weight
7,569 lb
Max Digging Depth
134 in
Net Power
40.1 hp
All mini excavators

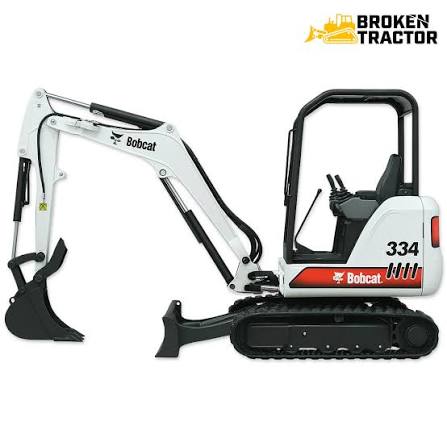

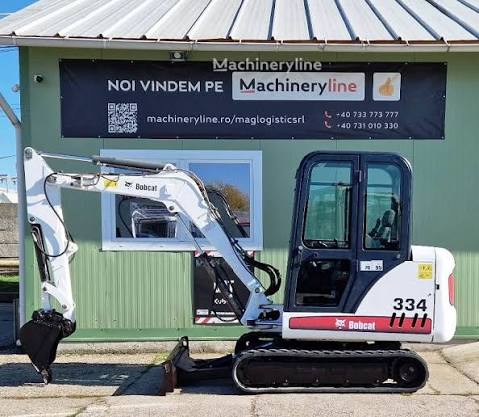

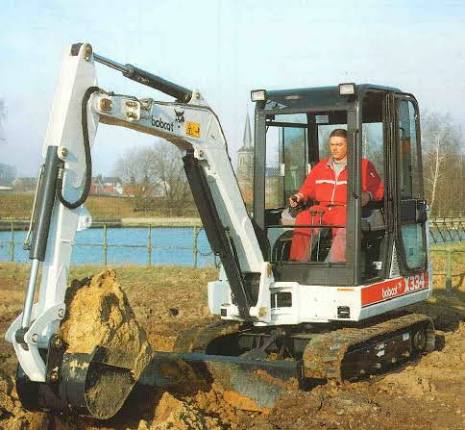

Bobcat 334 Mini Excavator
1 / 5
Image 1 of 5
Image: shop.bobcat.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,569 lb
Fuel Capacity15.3 gal
Hydraulic Pump Flow Capacity24.1 gal/min

Engine

Engine specifications
Engine ModelV-2203-M-DI-E2B
Displacement134 in³
Power Measured @2,400 rpm
Net Power40.1 hp

Dimensions

Dimensions specifications
Height - Top of Cab94 in
Length of Track on Ground62 in
Tail Swing Radius55 in
Width to Outside of Tracks61 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge49 in
Max Travel Speed3.5 mph
Shoe Size13 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth134 in
Max Reach Along Ground204 in
Max Vertical Wall Digging Depth101 in
Max Loading Height130 in
Shipping Length of Unit193 in
Max Cutting Height186 in
Shipping Height of Unit94 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
