Bobcat

430

Mini Excavator

Operating Weight
8,025 lb
Max Digging Depth
121 in
Net Power
42.8 hp
All mini excavators

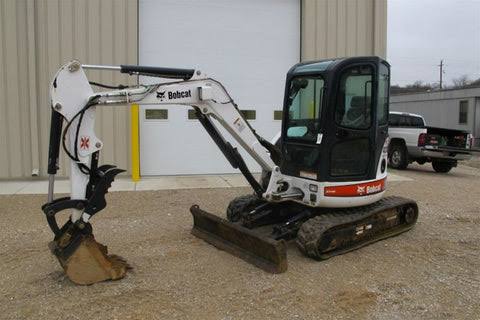

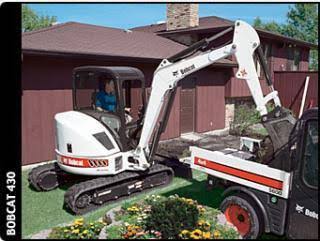

Bobcat 430 Mini Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,025 lb
Hydraulic Pump Flow Capacity24.1 gal/min

Engine

Engine specifications
Engine ModelV2203-M- DI
Displacement134 in³
Power Measured @2,400 rpm
Net Power42.8 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Height - Top of Cab96 in
Length of Track on Ground77 in
Width to Outside of Tracks71 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed2.9 mph
Shoe Size13 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth121 in
Max Reach Along Ground202 in
Max Vertical Wall Digging Depth86 in
Max Loading Height124 in
Shipping Length of Unit193 in
Max Cutting Height180 in
Shipping Height of Unit96 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Long Arm Excavator Option

Long Arm Excavator Option specifications
Net Power42.8 hp
Operating Weight8,259 lb
Max Digging Depth133 in
Displacement134 in³
Engine ModelV2203-M- DI
Ground Pressure4 psi
Height - Top of Cab96 in
Hydraulic Pump Flow Capacity24.1 gal/min
Length of Track on Ground77 in
Max Cutting Height189 in
Max Loading Height131 in
Max Reach Along Ground214 in
Max Travel Speed2.9 mph
Max Vertical Wall Digging Depth103 in
Number of Cylinders4
Power Measured @2,400 rpm
Shipping Height of Unit96 in
Shipping Length of Unit194 in
Shoe Size13 in
Swing Speed9 rpm
Width to Outside of Tracks71 in
