Bobcat
John Deere
302A
Backhoe Loader
42 specifications
1 / 5

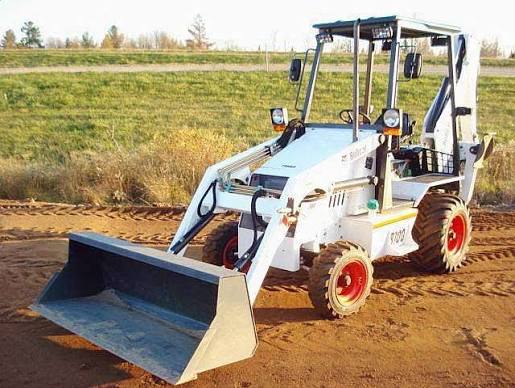

Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 4,865 lb |
|---|---|
| Operating Weight 2wd | 5,752 lb |
| Fuel Capacity | 14.5 gal |
| Tire Size Front - 2wd / 4wd | 23x8.5x12 |
| Turning Radius | 169 in |
Engine
| Engine Model | D1105 |
|---|---|
| Net Power | 31.5 hp |
| Aspiration | turbocharged |
Dimensions
| Wheelbase | 65 in |
|---|---|
| Transport Width | 64 in |
| Transport Length | 215 in |
| Height to Top of Suspended Cab | 91 in |
Transmission
| Max Speed | 4.8 mph |
|---|---|
| Transmission Type | hydrostatic |
Tires & Wheels
| Rear Tires Size | 31x15.5x15 |
|---|
General Specifications
| Operating Weight lbs (kg) | 4,865 (2,206) — Starting 2004 Model Year |
|---|---|
| Lift Capacity lbs (kgs) | 1,600 (726) — Starting 2004 Model Year |
| Loading Height ft (m) | 7.3 (2.2) — Starting 2004 Model Year |
| 4th Gear Fwd mph (kmh) | 5 (8) — Starting 2004 Model Year |
| Breakout Force lbs (kgs) | 3,600 (1,633) — Starting 2004 Model Year |
| Digging Depth ft (m) | 9 (2.7) — Starting 2004 Model Year |
| SAE Net hp (kW) | 25 (19) — Starting 2004 Model Year |
Backhoe
| Max Digging Depth | 108 in |
|---|---|
| Dig Depth | 111 in |
| Reach From Swivel | 144 in |
| Bucket Dig Force | 5,409 lb |
| Load Height | 95 in |
| Loading Height | 88 in |
Loader
| Bucket Capacity | 0.50 yd³ |
|---|---|
| Lift Capacity | 1,600 lb |
| Clearance at Max Dump Height | 70 in |
| Reach at Max Dump Height | 48 in |
| Dig Depth | 3 in |
| SAE - Net | 31.5 hp |
| Breakout Force | — |
Travel Speed
| 4th Gear Fwd | 5.0 mph |
|---|
