John Deere

302A

Backhoe Loader

Max Speed
15.8 mph
Gross Power
52.0 hp
Net Power
50.0 hp
All backhoe loaders

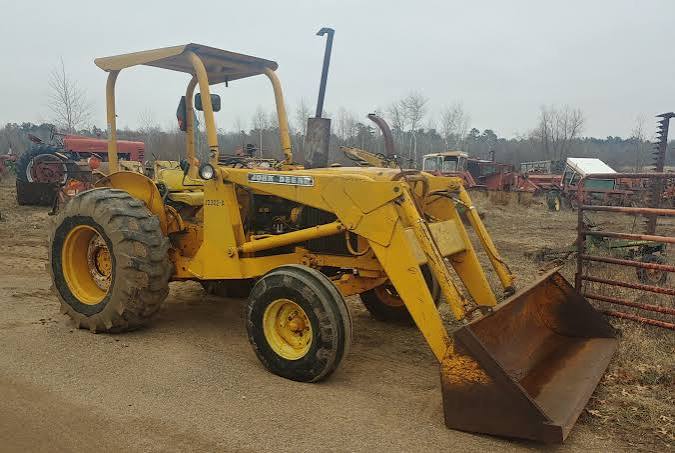

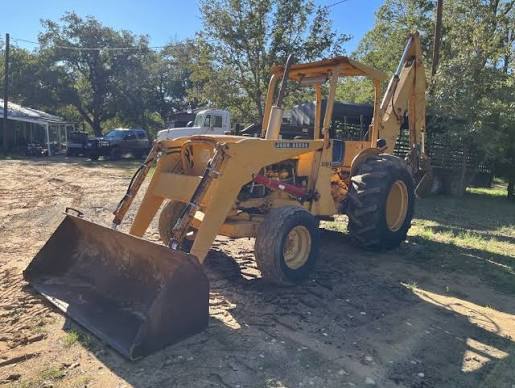

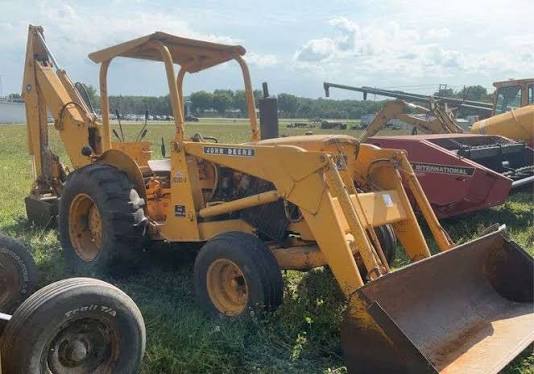

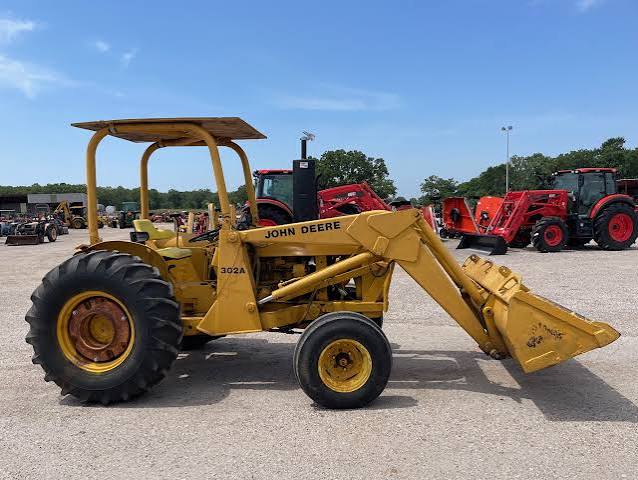

John Deere 302A Backhoe Loader
1 / 5
Image 1 of 5
Image: makana.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity19.5 gal
Hydraulic System Fluid Capacity10.0 gal
Cooling System Fluid Capacity3.1 gal
Tire Size Front - 2wd / 4wd11L-15
Operating Voltage12 V
Oil System Fluid Capacity2.3 gal
Alternator Supplied Amperage35 A
Max Weight6,261 lb

Engine

Engine specifications
Displacement165 in³
Power Measured @2,500 rpm
Gross Power52.0 hp
Net Power50.0 hp
Number of Cylinders3
Torque Measured @1,300 rpm
Engine MakeJohn Deere
Bore4 in
Stroke4 in
Net Max Torque129 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity28.0 gal/min
Relief Valve Pressure2,350 psi
Pump TypeClosed center

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase77 in
Transport Width76 in
Transport Length185 in
Height to Top of Suspended Cab91 in
Rear Tread Range60 in
Front Wheel Tread Width62 in

Transmission

Transmission specifications
Max Speed15.8 mph
Max Speed - Reverse25.3 mph
Number of Forward Gears8
Number of Reverse Gears8
Transmission TypePower shuttle

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size14.9-24

Backhoe

Backhoe specifications
Dig Depth165 in
Reach From Swivel209 in
Bucket Dig Force7,408 lb
Load Height135 in

Loader

Loader specifications
Clearance at Max Dump Height98 in
Bucket Breakout Force5,000 lb
Bucket Width81 in
Reach at Max Dump Height29 in
