John Deere

400

Backhoe Loader

Max Speed
16.1 mph
Net Power
59.0 hp
All backhoe loaders

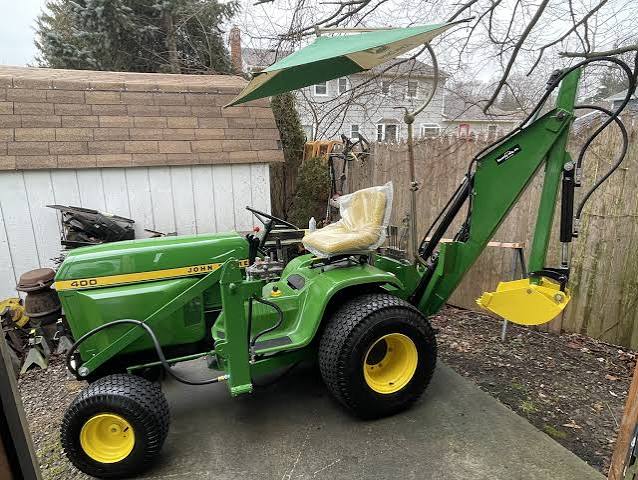

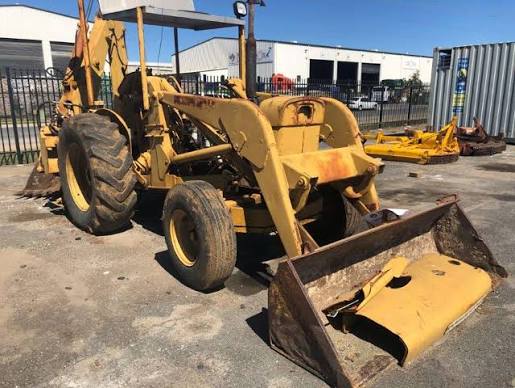

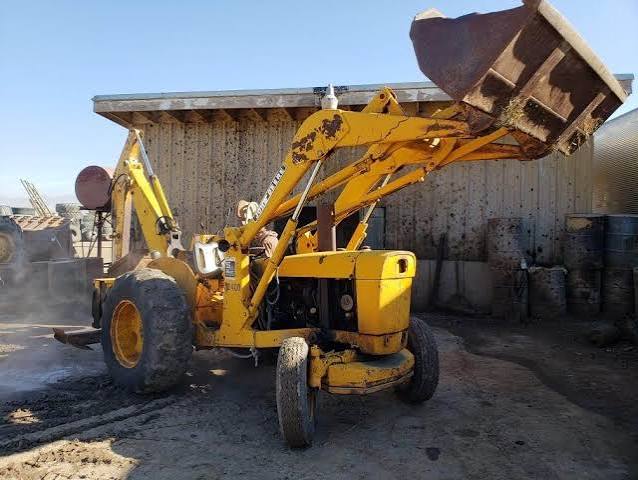

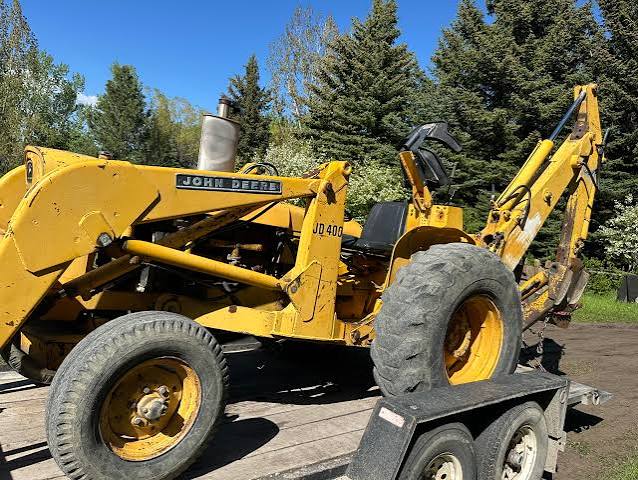

John Deere 400 Backhoe Loader
1 / 5
Image 1 of 5
Image: tradeearthmovers.com.au

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity19.5 gal
Hydraulic System Fluid Capacity10.8 gal
Cooling System Fluid Capacity3.1 gal
Tire Size Front - 2wd / 4wd7.50-16
Operating Voltage12 V
Oil System Fluid Capacity1.8 gal
Max Weight10,500 lb

Engine

Engine specifications
Displacement201 in³
Power Measured @2,500 rpm
Net Power59.0 hp
Number of Cylinders4
Torque Measured @1,300 rpm
Engine MakeJohn Deere
Stroke4 in
Bore4 in
Net Max Torque145 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity28.0 gal/min
Relief Valve Pressure2,250 psi
Pump TypeClosed center

Dimensions

Dimensions specifications
Wheelbase83 in
Transport Width76 in
Transport Length127 in
Height to Top of Suspended Cab80 in
Rear Tread Range78 in
Front Wheel Tread Width56 in
Shipping weight4,720 lb

Transmission

Transmission specifications
Max Speed16.1 mph
Max Speed - Reverse4.8 mph
Number of Forward Gears8
Number of Reverse Gears4
Transmission TypeConstant mesh

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size13.6-28

Loader

Loader specifications
Clearance at Max Dump Height100 in
Bucket Breakout Force4,000 lb
Reach at Max Dump Height29 in
