Bobcat

B250

Backhoe Loader

Bucket Capacity
0.50 yd³
Max Speed
4.0 mph
Net Power
31.5 hp
All backhoe loaders

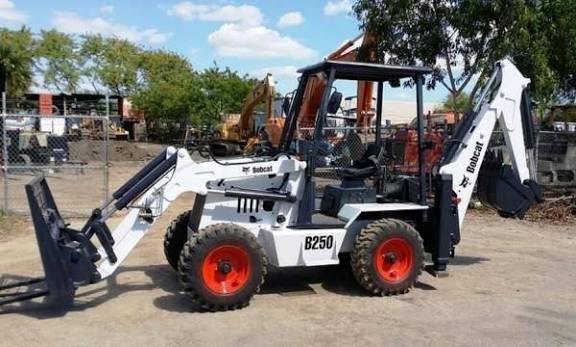

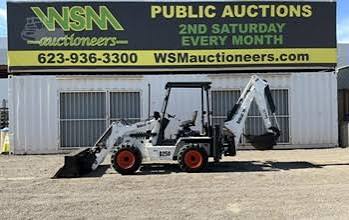

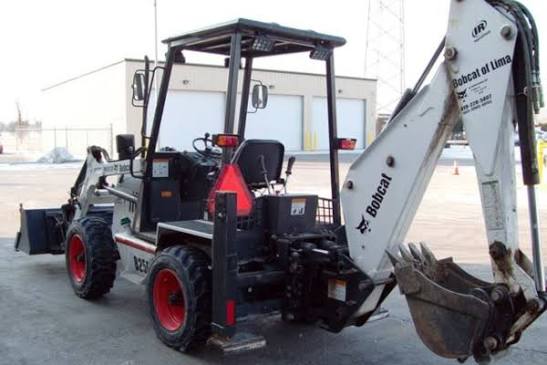

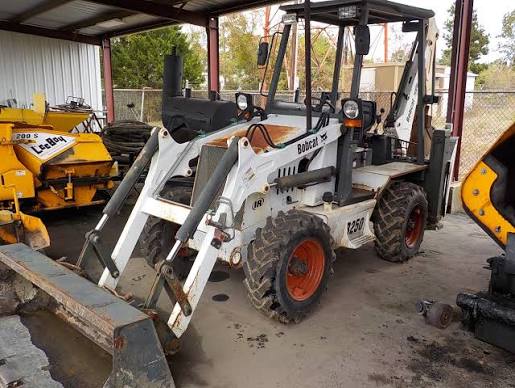

Bobcat B250 Backhoe Loader
1 / 5
Image 1 of 5
Image: shop.bobcat.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd6,770 lb
Fuel Capacity14.5 gal
Tire Size Front - 2wd / 4wd10x16.5
Turning Radius143 in

Engine

Engine specifications
Engine ModelD1105
Net Power31.5 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Wheelbase67 in
Transport Width64 in
Transport Length231 in
Height to Top of Suspended Cab94 in

Transmission

Transmission specifications
Max Speed4.0 mph
Transmission Typehydrostatic

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size10x16.5

General Specifications

General Specifications specifications
Operating Weight lbs (kg)6,220 (2,821) — Starting 2004 Model Year
Lift Capacity lbs (kgs)2,250 (1,021) — Starting 2004 Model Year
Loading Height ft (m)7 (2.1) — Starting 2004 Model Year
4th Gear Fwd mph (kmh)4.5 (7.2) — Starting 2004 Model Year
Breakout Force lbs (kgs)3,825 (1,735) — Starting 2004 Model Year
Digging Depth ft (m)10 (3.1) — Starting 2004 Model Year
SAE Net hp (kW)31.5 (23) — Starting 2004 Model Year

Backhoe

Backhoe specifications
Dig Depth127 in
Reach From Swivel154 in
Bucket Dig Force5,340 lb
Load Height95 in

Loader

Loader specifications
Bucket Capacity0.50 yd³
Clearance at Max Dump Height74 in
Bucket Breakout Force4,250 lb
Bucket Width63 in
Reach at Max Dump Height39 in
Dig Depth5 in
