Bobcat

B300

Backhoe Loader

Bucket Capacity
0.71 yd³
Max Speed
10.9 mph
Net Power
46.0 hp
All backhoe loaders

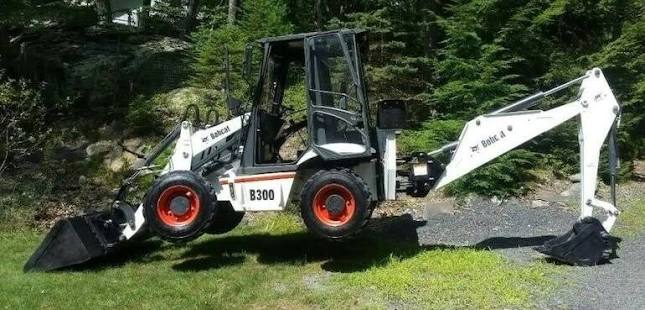

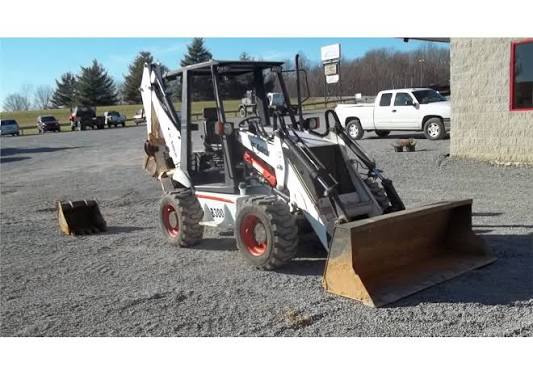

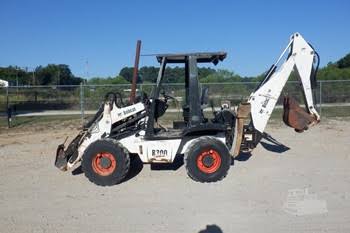

Bobcat B300 Backhoe Loader
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd9,260 lb
Fuel Capacity25.1 gal
Tire Size Front - 2wd / 4wd12x16.5
Turning Radius178 in

Engine

Engine specifications
Engine ModelV2203
Net Power46.0 hp

Dimensions

Dimensions specifications
Wheelbase72 in
Transport Width74 in
Transport Length231 in
Height to Top of Suspended Cab93 in

Transmission

Transmission specifications
Max Speed10.9 mph
Transmission Typehydrostatic

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size12x16.5

General Specifications

General Specifications specifications
Operating Weight lbs (kg)9,015 (4,089) — Starting 2004 Model Year
Lift Capacity lbs (kgs)3,200 (1,452) — Starting 2004 Model Year
Loading Height ft (m)7.3 (2.2) — Starting 2004 Model Year
4th Gear Fwd mph (kmh)9 (14.5) — Starting 2004 Model Year
Breakout Force lbs (kgs)8,430 (3,824) — Starting 2004 Model Year
Digging Depth ft (m)9.8 (3) — Starting 2004 Model Year
SAE Net hp (kW)46 (34) — Starting 2004 Model Year

Backhoe

Backhoe specifications
Dig Depth133 in
Reach From Swivel167 in
Bucket Dig Force6,821 lb
Load Height110 in

Loader

Loader specifications
Bucket Capacity0.71 yd³
Clearance at Max Dump Height81 in
Bucket Breakout Force8,430 lb
Bucket Width74 in
Reach at Max Dump Height17 in
Dig Depth3 in
