Ingersoll Rand

BL570

Backhoe Loader

Bucket Capacity
0.71 yd³
Max Speed
11.5 mph
Gross Power
56.0 hp
All backhoe loaders

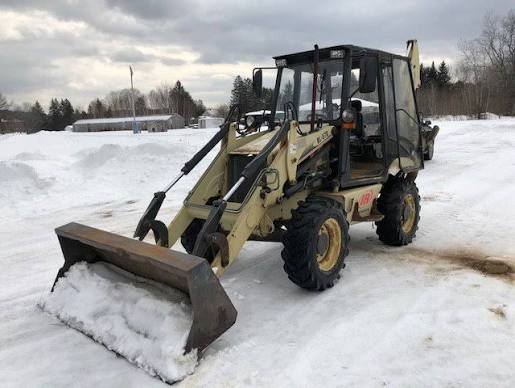

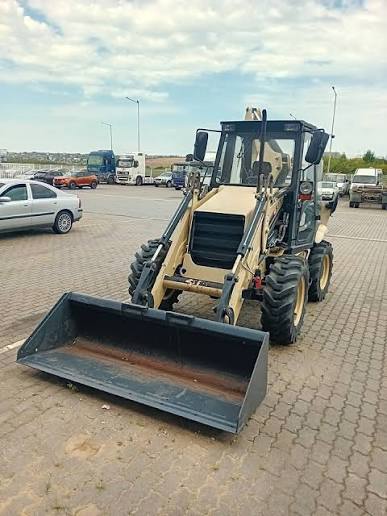

Ingersoll Rand BL570 Backhoe Loader
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd9,954 lb
Operating Weight9,750 lb
Fuel Capacity25.1 gal
Turning Radius186 in

Engine

Engine specifications
Gross Power56.0 hp

Dimensions

Dimensions specifications
Wheelbase76 in
Transport Width74 in
Transport Length241 in
Height to Top of Suspended Cab98 in

Transmission

Transmission specifications
Max Speed11.5 mph
Number of Forward Gears2
Number of Reverse Gears2
Transmission TypeHydrostatic

Backhoe

Backhoe specifications
Max Digging Depth132 in
Dig Depth126 in
Reach From Swivel182 in
Dig Depth - Extended143 in
Bucket Dig Force19,191 lb
Load Height125 in
Loading Height128 in

Loader

Loader specifications
Bucket Capacity0.71 yd³
Lift Capacity3,350 lb
Clearance at Max Dump Height93 in
Bucket Breakout Force2,106,460 lb
Bucket Width74 in
Reach at Max Dump Height16 in
Dig Depth2 in
SAE - Net56.0 hp
Breakout Force—

Travel Speed

Travel Speed specifications
4th Gear Fwd12.5 mph
