Bobcat

E26

Mini Excavator

Operating Weight
5,666 lb
Max Digging Depth
102 in
Net Power
24.8 hp
All mini excavators

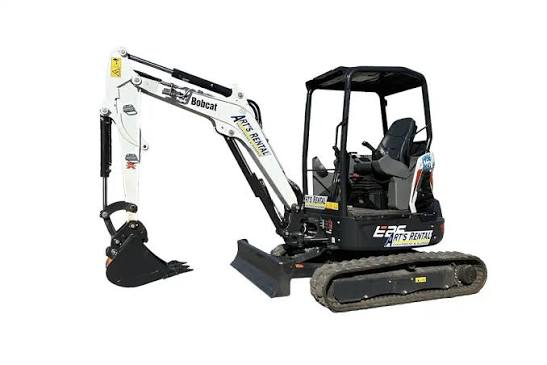

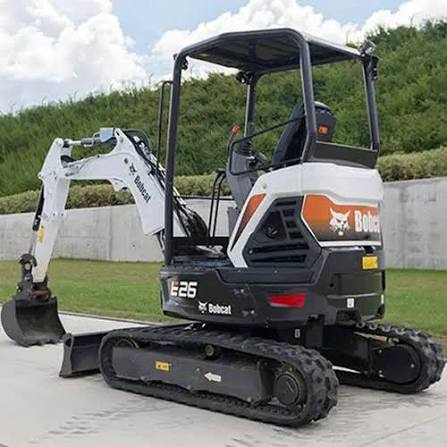

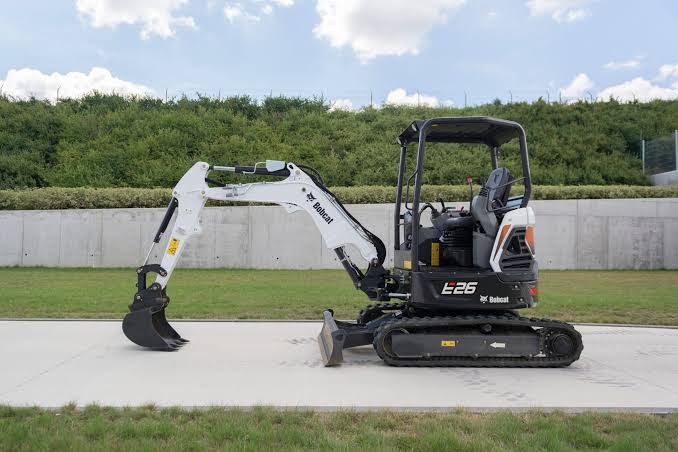

Bobcat E26 Mini Excavator
1 / 5
Image 1 of 5
Image: bobcat.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,666 lb
Fuel Capacity9.1 gal

Engine

Engine specifications
Power Measured @2,500 rpm
Net Power24.8 hp
FuelDiesel
EmissionsTier 4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity12.5 gal/min
Operating pressure2,610 psi

Dimensions

Dimensions specifications
Height - Top of Cab96 in
Height95 in
Length170 in
Width60 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.8 mph
Min Travel Speed1.5 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth102 in
Max Reach Along Ground179 in
Max.Dumping Height119 in
Boom Swing - Left60 °
Boom Swing - Right60 °
Arm Digging Force3,552 lb
Bucket Digging Force4,991 lb

General Specifications

General Specifications specifications
Operating Weight lbs (kg)6,489 (2,942) — Starting 2025 Model Year
Digging Depth ft (m)9.53 (2.91) — Starting 2025 Model Year
Engine hp (kW)24.8 (18.5) — Starting 2025 Model Year
Digging Reach ft. (m)15.99 (4.88) — Starting 2025 Model Year
Bucket Breakout Force lbf (N)5,652 (25,140) — Starting 2025 Model Year

Lift System

Lift System specifications
Max Lift Capacity1,997 lb
Lift Radius118 in
