Bolinder Munktell

VHK100

Motor Grader

Max Operation Weight - Total
24,802 lb
Max Power
100.0 hp
Net Power Gears 7-8
100.0 hp
All motor graders

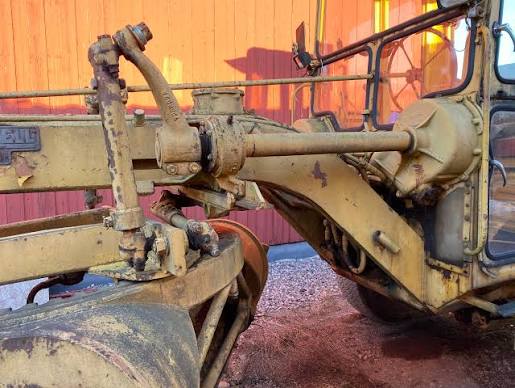

Bolinder Munktell VHK100 Motor Grader
1 / 5
Image 1 of 5
Image: psauction.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Max Operation Weight - Total24,802 lb
Max Operation Weight - Front Axle10,665 lb
Max Operation Weight - Rear Axle14,137 lb
Std Operation Weight - Total21,605 lb
Tire Size13.00-24 12ply
Fuel Capacity33.0 gal
Std Operation Weight - Front Axle6,283 lb
Std Operation Weight - Rear Axle15,322 lb
Operating Voltage24 V

Engine

Engine specifications
Engine ModelD67A
Displacement411 in³
Max Power100.0 hp
Net Power Gears 7-8100.0 hp

Dimensions

Dimensions specifications
Wheelbase217 in
Overall Length296 in
Width Over Tires89 in
Height to Top of Isomount Cab117 in
Blade Base96 in
Tandem Axle Wheelbase57 in
Front Ground Clearance25 in

Transmission

Transmission specifications
Max Speed - Forward21.1 mph
Max Speed - Reverse5.0 mph
Number of Gears - Forward8
Number of Gears - Reverse2

Moldboard

Moldboard specifications
Moldboard Height24 in
Moldboard Width121 in
Side Shift Left33 in
Side Shift Right33 in
Blade Pull at Max Weight9,259 lb

Circle

Circle specifications
Max Lift Above Ground19 in
Max Reach Outside Tires - Left71 in
Max Reach Outside Tires - Right71 in
Diameter59 in
Rotation360 °

Front Axle

Front Axle specifications
Wheel Lean23 °
Ground Clearance25 in

Steering System

Steering System specifications
Turning Radius390 in
