BOMAG

BC 1172 RB

Landfill Compactor

Operating Weight
120,000 lb
Max Speed
7.5 mph
Gross Power
590.1 hp
All landfill compactors

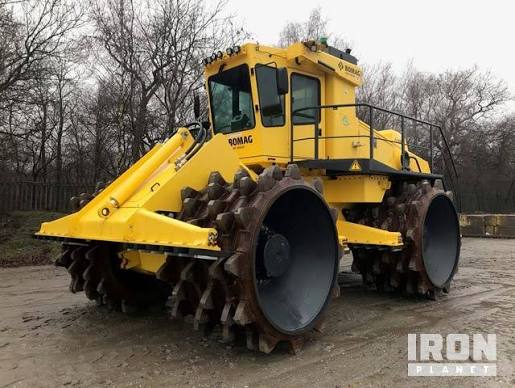

BOMAG BC 1172 RB Landfill Compactor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight120,000 lb
Fuel Capacity264.2 gal
Hydraulic System Fluid Capacity155.9 gal
Engine Oil Capacity11.9 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelBF8M 1015CP
Gross Power590.1 hp

Dimensions

Dimensions specifications
Ground Clearance31 in
Height - Top of Cab191 in
Wheelbase162 in
Length With Blade on Ground371 in
Width Over Wheels178 in

Transmission

Transmission specifications
Max Speed7.5 mph
Number of Forward Gears3
Number of Reverse Gears3

Blades

Blades specifications
Blade Width178 in
Blade Height88 in

Wheels

Wheels specifications
Front Wheels Drum Diameter87 in
Front Wheels Drum Width55 in
Rear Wheels Drum Diameter87 in
Rear Wheels Drum Width55 in
