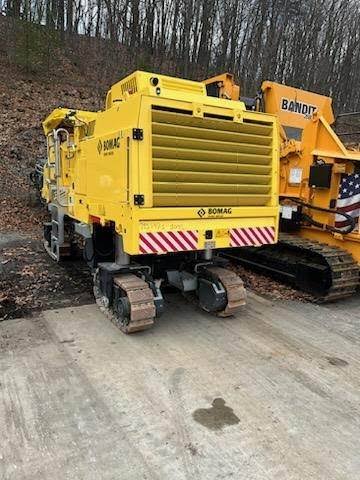

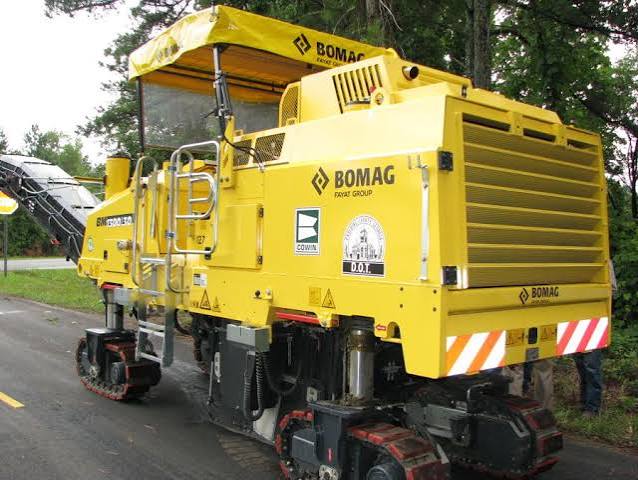

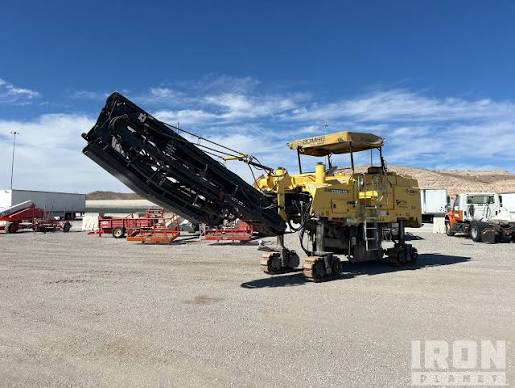

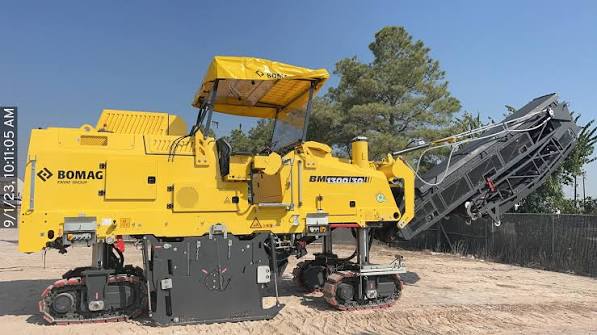

BOMAG
BM 1300/30
- Operating Weight - Full Load
- 41,822 lb
- Cutting Width
- 52 in
- Displacement
- 439 in³
- Gross Power
- 275.0 hp
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight - Full Load | 41,822 lb |
|---|---|
| Operating Speed | 1.0 mph |
| Travel Speed | 3.9 mph |
| Fuel Capacity | 132.1 gal |
| Water Spray System Fluid Capacity | 264.2 gal |
| Shipping Weight - Empty | 38,427 lb |
| Hydraulic System Fluid Capacity | 33.1 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 A |
Engine
| Engine Model | C7 |
|---|---|
| Displacement | 439 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 275.0 hp |
| Number of Cylinders | 6 |
Dimensions
| Shipping Height | 109 in |
|---|---|
| Shipping Length | 389 in |
| Shipping Width | 83 in |
| Operating Length | 492 in |
| Max Operating Height | 191 in |
Track
| Number of Track Units | 4 |
|---|---|
| Front Track Width | 10 in |
| Rear Track Width | 10 in |
| Front Track Length | 29 in |
| Rear Track Length | 29 in |
Conveyor System
| Discharge Conveyor Width | 24 in |
|---|---|
| Collecting Conveyor Width | 24 in |
Rotary Cutter
| Cutting Width | 52 in |
|---|---|
| Cutting Depth | 13 in |
| Number of Tools | 124 |
| Tool Spacing | 1 in |
| Cutter Diameter | 39 in |
