BOMAG

BW 90 AD-2

Smooth Drum Roller

Operating Weight
3,351 lb
Max Speed
5.0 mph
Gross Power
15.9 hp
All smooth drum rollers

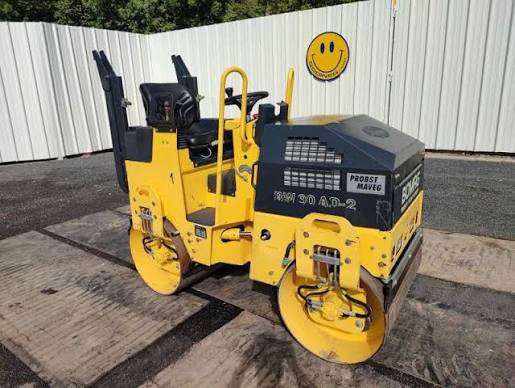

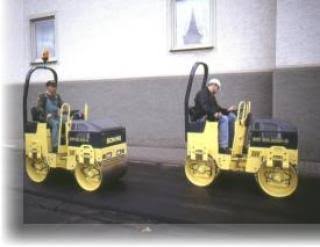

BOMAG BW 90 AD-2 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: hayden-murphy.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,351 lb
Max Speed5.0 mph
Fuel Capacity6.1 gal
Operating Width38 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelD 722 B
Power Measured @3,000 rpm
Gross Power15.9 hp
Number of Cylinders3
MakeKubota

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab91 in
Wheelbase4 in
Overall Length6 in
Overall Width40 in

Drum

Drum specifications
Drum Diameter23 in
Vibration Frequency 160 vpm
Static Linear Load4 lb-ft
Vibration Frequency3,600 vpm
Frequency60 vpm
Nominal Amplitude - Med0 in
Centrifugal Force - MEd3,372 lb
