Broderson
Shuttlelift

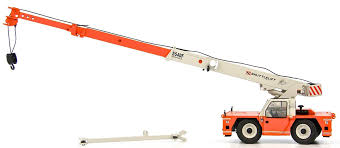

5540F
Carrydeck Crane
31 specifications
1 / 5

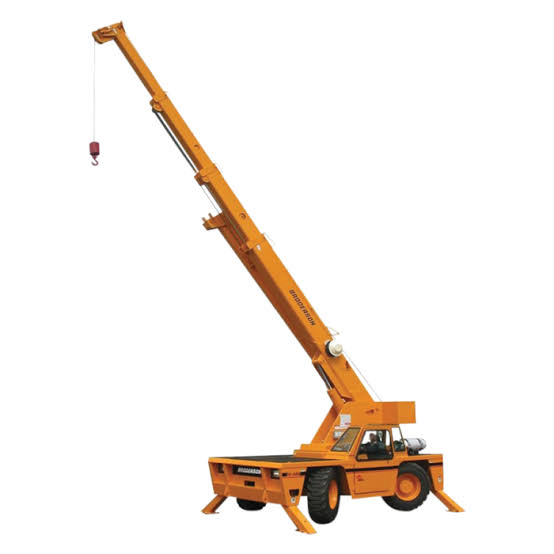

Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 27,760 lb |
|---|---|
| Operating Voltage | 12 V |
| Tire Size | 15x22.5 |
| Alternator Supplied Amperage | 100 A |
| Fuel Capacity | 30.0 gal |
| Hydraulic System Fluid Capacity | 54.0 gal |
Engine
| Engine Model | GM 4.3L V-6 |
|---|---|
| Displacement | 262 in³ |
| Gross Power | 110.0 hp |
| Max Torque | 243 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 8 in |
| Transport Width | 96 in |
| Transport Height | 96 in |
| Transport Length | 270 in |
| Width w/ Outriggers Extended | 144 in |
| Upper Structure Tail Swing Radius | 72 in |
| Carrier/Base Length | 180 in |
Transmission
| Max Speed - Forward | 20.0 mph |
|---|---|
| Max Speed - Reverse | 20.0 mph |
| Transmission Type | powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Boom
| Max Lift Capacity | 30,000 lb |
|---|---|
| Max Elevating Angle | 73 ° |
| Max Height @ Max Raise Angle - no jib | 545 in |
| Min Height @ Max Raise Angle | 304 in |
| Number of Sections | 3 |
| Swing Speed | 2 rpm |
| Max Operating Radius | 612 in |
| Min Operating Radius | 72 in |

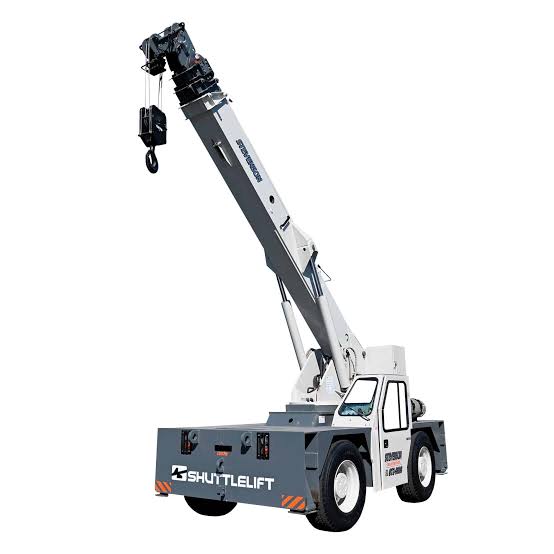

Comparable machines
