Grove

IND-68

Carrydeck Crane

Operating Weight
35,500 lb
Max Lift Capacity
20,000 lb
Max Speed - Forward
25.0 mph
All carrydeck cranes

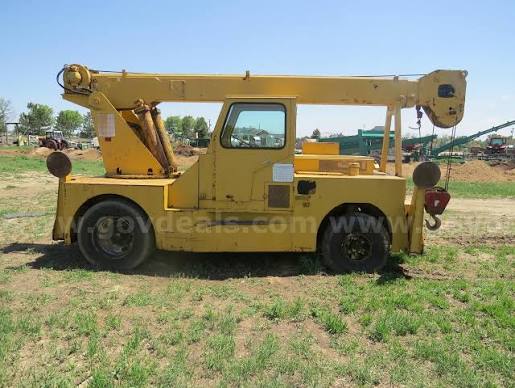

Grove IND-68 Carrydeck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight35,500 lb
Operating Voltage12 V
Tire Size(R)10x15-14PLY (F)11X2014PLY
Carrier Fuel Capacity43.1 gal
Number of Axels2
Alternator Supplied Amperage38 A
Carrier Hydraulic System Fluid Capacity46.0 gal
Carrier Cooling System Fluid Capacity6.4 gal

Dimensions

Dimensions specifications
Ground Clearance11 in
Transport Width97 in
Transport Height119 in
Transport Length308 in
Width w/ Outriggers Extended168 in
Carrier Length202 in

Transmission

Transmission specifications
Max Speed - Forward25.0 mph
Transmission Typepowershift
Number of Forward Gears4
Number of Reverse Gears4

Boom

Boom specifications
Max Lift Capacity20,000 lb
Max Elevating Angle70 °
Max Height @ Max Raise Angle - no jib252 in
Min Height @ Max Raise Angle156 in
Number of Sections2
Swing Speed3 rpm
Max Working Radius228 in
Min Working Radius72 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power115.0 hp
Displacement300 in³
MakeGrove
Power Measured @2,800 rpm
Max Torque216 lb-ft
Torque Measured @2,800 rpm
