Shuttlelift

7755

Carrydeck Crane

Gross Power
130.1 hp
Operating Weight
43,000 lb
Max Lift Capacity
30,000 lb
Max Speed - Forward
19.5 mph
All carrydeck cranes

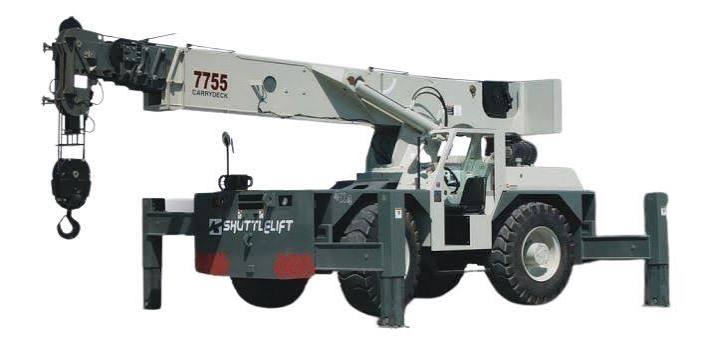

Shuttlelift 7755 Carrydeck Crane
1 / 5
Image 1 of 5
Image: stevensoncrane.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,000 lb
Operating Voltage12 V
Tire Size14.00-24
Carrier Fuel Capacity50.0 gal
Number of Axels2
Alternator Supplied Amperage63 A
Upper Structure Hydraulic System Fluid Capacity60.0 gal
Carrier Cooling System Fluid Capacity5.8 gal

Dimensions

Dimensions specifications
Ground Clearance17 in
Transport Width97 in
Transport Height119 in
Transport Length298 in
Width w/ Outriggers Extended183 in
Upper Structure Tail Swing Radius95 in
Carrier Length198 in

Transmission

Transmission specifications
Max Speed - Forward19.5 mph
Max Speed - Reverse19.5 mph
Transmission Type4-speed powershift
Number of Forward Gears4
Number of Reverse Gears4

Boom

Boom specifications
Max Lift Capacity30,000 lb
Max Elevating Angle80 °
Max Height @ Max Raise Angle - no jib804 in
Min Height @ Max Raise Angle234 in
Number of Sections5
Swing Speed3 rpm
Max Working Radius762 in
Min Working Radius72 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power130.1 hp
Displacement275 in³
MakeShuttlelift
Power Measured @2,500 rpm
Max Torque457 lb-ft
Torque Measured @1,500 rpm
