Shuttlelift

5560B

Carrydeck Crane

Gross Power
99.3 hp
Operating Weight
30,700 lb
Max Lift Capacity
36,000 lb
Max Speed - Forward
21.1 mph
All carrydeck cranes

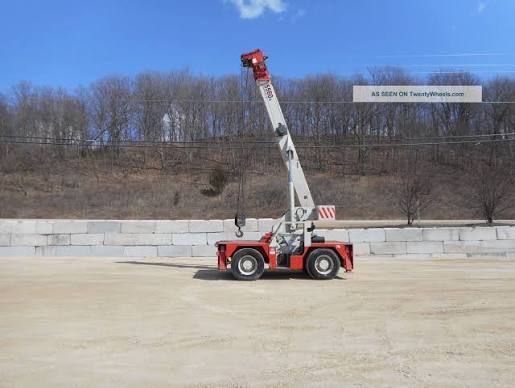

Shuttlelift 5560B Carrydeck Crane
1 / 5
Image 1 of 5
Image: stevensoncrane.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,700 lb
Operating Voltage12 V
Tire Size385/65R22.5
Carrier Fuel Capacity40.0 gal
Number of Axels2
Alternator Supplied Amperage63 A
Carrier Hydraulic System Fluid Capacity40.0 gal
Carrier Cooling System Fluid Capacity5.8 gal

Dimensions

Dimensions specifications
Ground Clearance17 in
Transport Width95 in
Transport Height96 in
Transport Length272 in
Width w/ Outriggers Extended167 in
Upper Structure Tail Swing Radius73 in
Carrier Length170 in

Transmission

Transmission specifications
Max Speed - Forward21.1 mph
Max Speed - Reverse21.1 mph
Transmission Typepowershift
Number of Forward Gears4
Number of Reverse Gears4

Boom

Boom specifications
Max Lift Capacity36,000 lb
Max Elevating Angle80 °
Max Height @ Max Raise Angle - no jib654 in
Min Height @ Max Raise Angle223 in
Number of Sections4
Swing Speed3 rpm
Max Working Radius612 in
Min Working Radius72 in
Height674 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power99.3 hp
Displacement275 in³
MakeShuttlelift
