Broderson

IC-250-3B

Carrydeck Crane

Operating Weight
37,700 lb
Max Lift Capacity
36,000 lb
Max Speed - Forward
18.0 mph
All carrydeck cranes

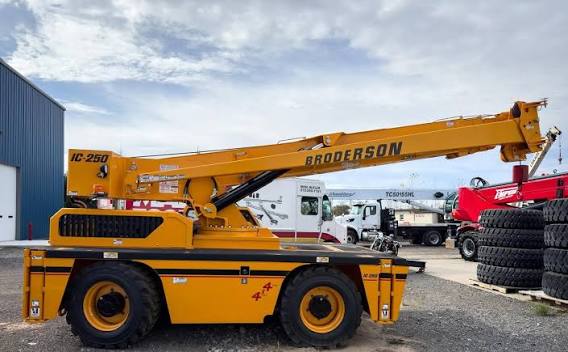

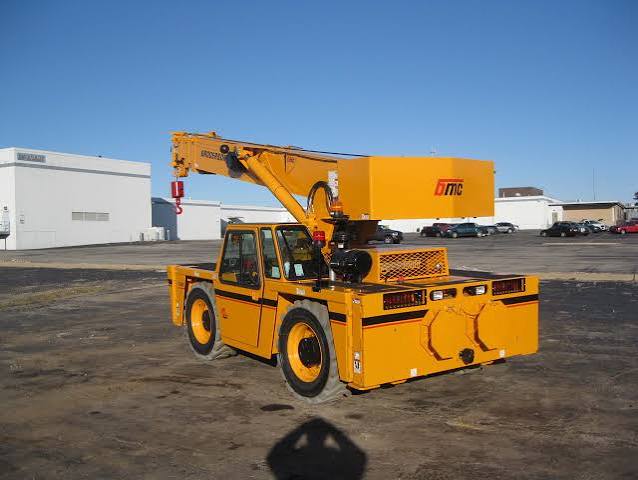

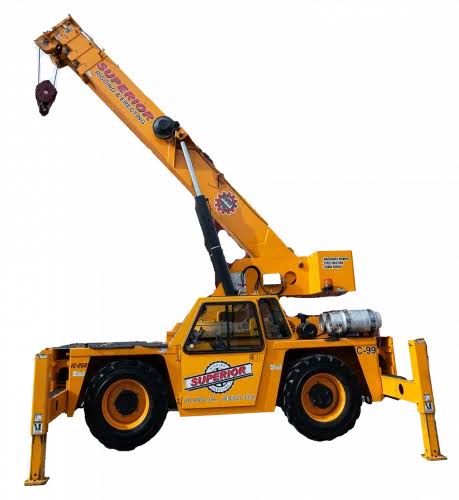

Broderson IC-250-3B Carrydeck Crane
1 / 5
Image 1 of 5
Image: wppecrane.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight37,700 lb
Operating Voltage12 V
Tire Size385/65D22.5
Alternator Supplied Amperage95 A
Fuel Capacity30.0 gal
Hydraulic System Fluid Capacity54.0 gal

Engine

Engine specifications
Engine ModelGM 5.7L V-8
Displacement348 in³
Gross Power126.0 hp
Max Torque272 lb-ft

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase8 in
Transport Width95 in
Transport Height96 in
Transport Length282 in
Width w/ Outriggers Extended178 in
Upper Structure Tail Swing Radius89 in
Carrier/Base Length186 in

Transmission

Transmission specifications
Max Speed - Forward18.0 mph
Transmission TypePowershift
Number of Forward Gears4
Number of Reverse Gears4

Boom

Boom specifications
Max Lift Capacity36,000 lb
Max Elevating Angle75 °
Max Height @ Max Raise Angle - no jib727 in
Min Height @ Max Raise Angle329 in
Number of Sections4
Max Operating Radius840 in
Min Operating Radius72 in
