Broderson

RT-300-2B

Rough Terrain Crane

Operating Weight
44,100 lb
Max Speed - Forward
26.0 mph
Gross Power
130.0 hp
All rough terrain cranes

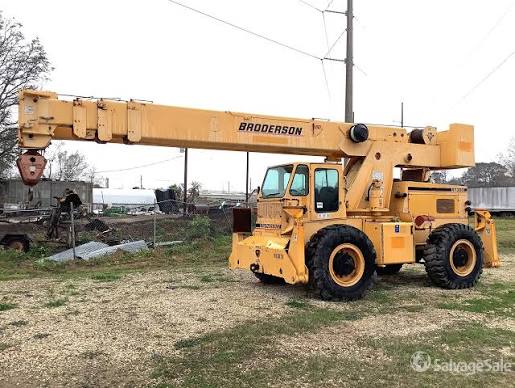

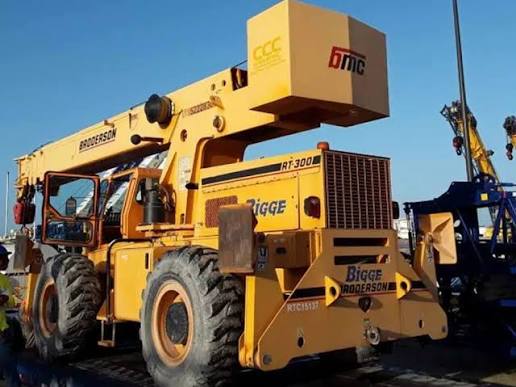

Broderson RT-300-2B Rough Terrain Crane
1 / 5
Image 1 of 5
Image: smequipment.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight44,100 lb
Fuel Capacity50.0 gal
Tire Size17.5 x 25
Operating Voltage12 V
Hydraulic System Fluid Capacity70.0 gal

Engine

Engine specifications
Engine Model6068D
Power Measured @2,500 rpm
Gross Power130.0 hp
Torque Measured @1,200 rpm
Max Torque335 lb-ft
Engine MakeJohn Deere

Dimensions

Dimensions specifications
Wheelbase9 in
Transport Width110 in
Transport Height134 in
Transport Length349 in
Width w/ Outriggers Extended155 in
Upper Structure Tail Swing Radius106 in
Carrier/Base Length193 in

Transmission

Transmission specifications
Max Speed - Forward26.0 mph
Number of Forward Gears6
Number of Reverse Gears3
Transmission TypeFunk 2000 powershift
