Case IH
Rostselmash
ACROS 540
Combine
24 specifications

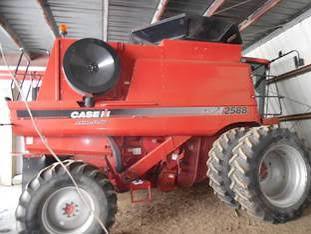

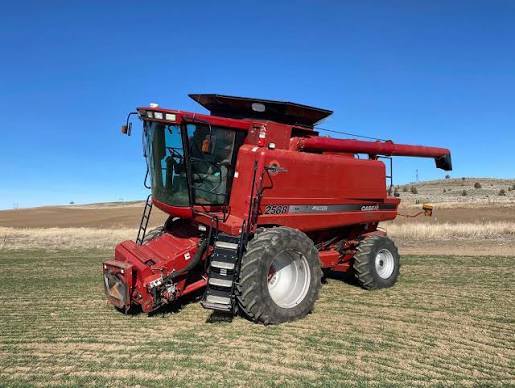

Case IH
2588
- Operating Weight w/o Attachment
- 30,000 lb
- Fuel Capacity
- 180.0 gal
- Displacement
- 506 in³
- Power
- 305.0 hp
1 / 5
Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight w/o Attachment | 30,000 lb |
|---|---|
| Fuel Capacity | 180.0 gal |
| Transmission Type | hydrostatic drive |
| Number of Gears | 3 |
Engine
| Displacement | 506 in³ |
|---|---|
| Power | 305.0 hp |
| Power Boost Power | 325.0 hp |
Dimensions
| Wheelbase | 135 in |
|---|---|
| Width Over Tires | 133 in |
| Height to Top of Isomount Cab | 156 in |
Cleaning System
| Total Cleaning Area | 7,905 in³ |
|---|---|
| Cleaning Fan Speed - High | 1,250 rpm |
| Cleaning Fan Speed - Low | 450 rpm |
| Self Leveling | — |
Grain Handling
| Grain Tank Capacity | 2,699.7 gal |
|---|---|
| Unloading Speed | 2.4 bu/sec |
| Unloading Auger Length | 216 in |
Threshing
| Rotor Diameter | 30 in |
|---|---|
| Rotor Speed - High | 1,125 rpm |
| Rotor Speed - Low | 450 rpm |
