Case IH

7010

Combine

Operating Weight w/o Attachment
34,500 lb
Fuel Capacity
264.0 gal
Displacement
549 in³
Power
350.0 hp
All combines/harvesters

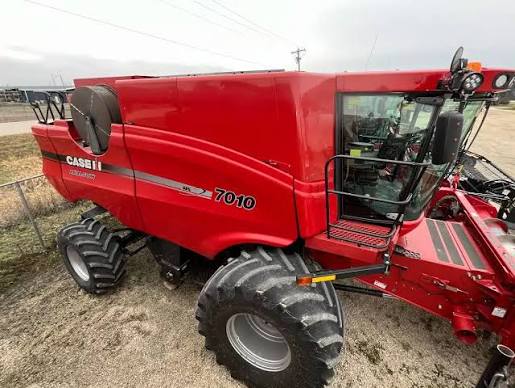

Case IH 7010 Combine
1 / 5
Image 1 of 5
Image: agroecopower.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment34,500 lb
Fuel Capacity264.0 gal
Transmission TypeHydrostatic drive
Number of Gears4

Engine

Engine specifications
Displacement549 in³
Power350.0 hp
Power Boost Power390.0 hp

Dimensions

Dimensions specifications
Wheelbase146 in
Width Over Tires157 in
Height to Top of Isomount Cab150 in

Cleaning System

Cleaning System specifications
Total Cleaning Area8,370 in³
Cleaning Fan Speed - High1,150 rpm
Cleaning Fan Speed - Low300 rpm
Self Leveling—

Grain Handling

Grain Handling specifications
Grain Tank Capacity2,932.4 gal
Unloading Speed3.2 bu/sec
Unloading Auger Length252 in

Threshing

Threshing specifications
Rotor Diameter30 in
Rotor Speed - High1,180 rpm
Rotor Speed - Low220 rpm
