Case IH
Rostselmash
ACROS 540
Combine
24 specifications
Case IH

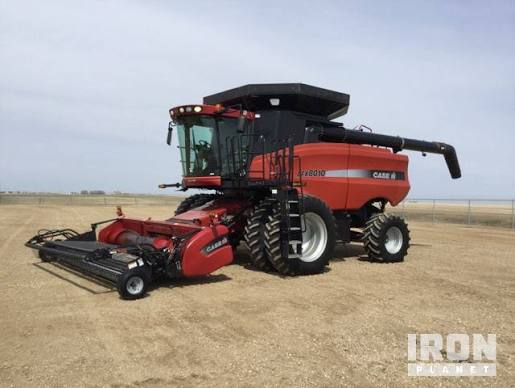

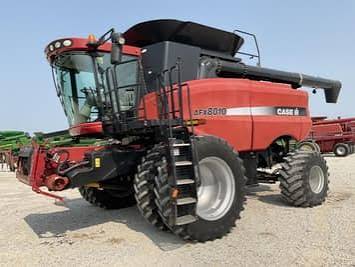

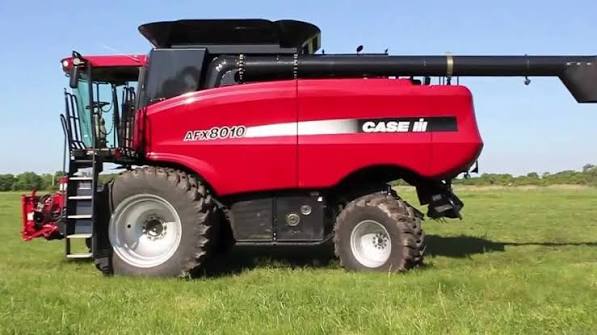

8010
- Operating Weight w/o Attachment
- 35,500 lb
- Fuel Capacity
- 264.0 gal
- Displacement
- 629 in³
- Power
- 400.0 hp
1 / 5
Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight w/o Attachment | 35,500 lb |
|---|---|
| Fuel Capacity | 264.0 gal |
| Transmission Type | hydrostatic drive |
| Number of Gears | 4 |
Engine
| Displacement | 629 in³ |
|---|---|
| Power | 400.0 hp |
| Power Boost Power | 450.0 hp |
Dimensions
| Wheelbase | 146 in |
|---|---|
| Width Over Tires | 157 in |
| Height to Top of Isomount Cab | 150 in |
Cleaning System
| Total Cleaning Area | 10,695 in³ |
|---|---|
| Cleaning Fan Speed - High | 1,150 rpm |
| Cleaning Fan Speed - Low | 300 rpm |
| Self Leveling | — |
Grain Handling
| Grain Tank Capacity | 3,258.2 gal |
|---|---|
| Unloading Speed | 3.2 bu/sec |
| Unloading Auger Length | 252 in |
Threshing
| Rotor Diameter | 30 in |
|---|---|
| Rotor Speed - High | 1,180 rpm |
| Rotor Speed - Low | 220 rpm |
