Case IH

8230

Combine

Operating Weight w/o Attachment
37,500 lb
Fuel Capacity
264.0 gal
Displacement
13 in³
Power
450.0 hp
All combines/harvesters

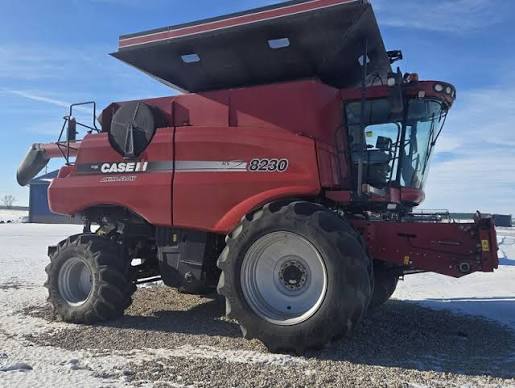

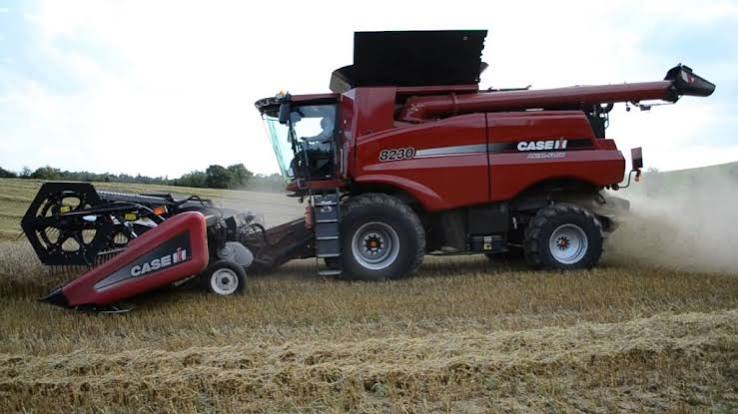

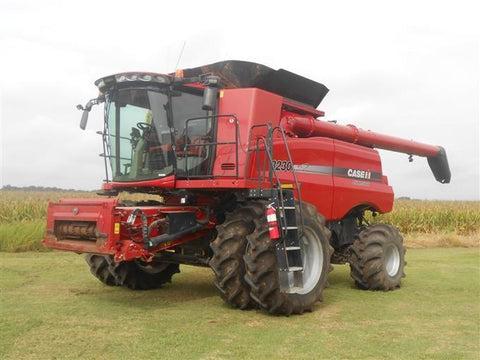

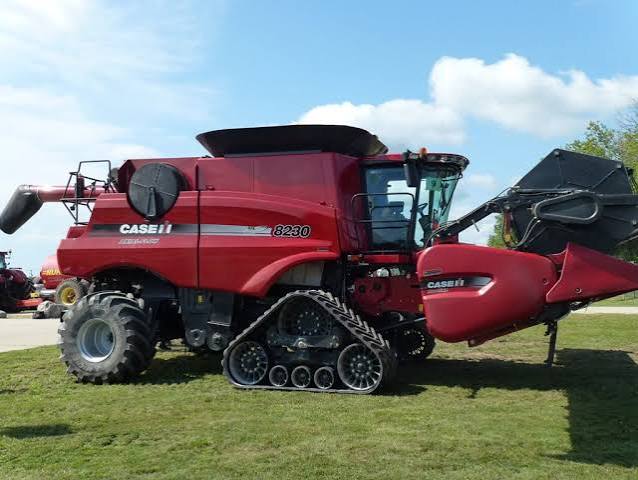

Case IH 8230 Combine
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment37,500 lb
Fuel Capacity264.0 gal
Transmission Type4-SPEED HYDROSTATIC DRIVE
Number of Gears4

Engine

Engine specifications
Engine ModelFPT
Displacement13 in³
Power Measured @60 rpm
Power450.0 hp
Power Boost Power510.0 hp

Dimensions

Dimensions specifications
Wheelbase1,775 in
Overall Length276 in
Width Over Tires360 in
Height to Top of Isomount Cab346 in

Cleaning System

Cleaning System specifications
Total Cleaning Area10,075 in³
Cleaning Fan Speed - High1,150 rpm
Cleaning Fan Speed - Low300 rpm
Self Leveling—

Feeding

Feeding specifications
Conveyor Width10 in
Conveyor Length12 in
Conveyor Speed2 rpm

Grain Handling

Grain Handling specifications
Grain Tank Capacity3,258.2 gal
Unloading Auger Length336 in

Separating

Separating specifications
Separating Area2 in³
Separator TypeLONGITUDINALLY MOUNTED ROTOR
Separator Length2 in
Discharge Grate Area2 in³

Threshing

Threshing specifications
Rotor Diameter30 in
Rotor Speed - High730 rpm
Rotor Speed - Low220 rpm
Concave Area2 in³
Beater Grate Area2 in³
