Case IH
Rostselmash
ACROS 540
Combine
24 specifications
Case IH
8240
- Operating Weight w/o Attachment
- 44,548 lb
- Fuel Capacity
- 297.0 gal
- Displacement
- 787 in³
- Power
- 480.0 hp
1 / 5

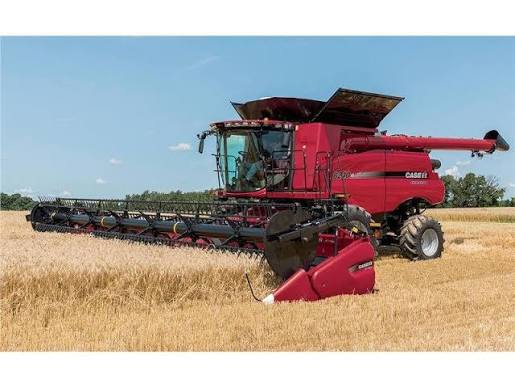

Image 1 of 5
Specifications
16 data points
Operating Specifications
| Operating Weight w/o Attachment | 44,548 lb |
|---|---|
| Fuel Capacity | 297.0 gal |
Engine
| Engine Model | 12.9l |
|---|---|
| Displacement | 787 in³ |
| Power Measured @ | 555 rpm |
| Number of Cylinders | 6 |
| Power | 480.0 hp |
| Power Boost Power | 75.0 hp |
Dimensions
| Wheelbase | 1,772 in |
|---|
Feeding
| Conveyor Width | 54 in |
|---|
Grain Handling
| Grain Tank Capacity | 3,816.8 gal |
|---|
Separating
| Separator Type | Longitudinal rotor |
|---|
Threshing
| Rotor Diameter | 30 in |
|---|---|
| Rotor Length | 103 in |
| Rotor Speed - High | 1,180 rpm |
| Rotor Speed - Low | 220 rpm |
