Case IH

8940

Tractor

Operating Weight
18,168 lb
Displacement
507 in³
Power Measured @
2,200 rpm
Gross Power
227.0 hp
All tractors

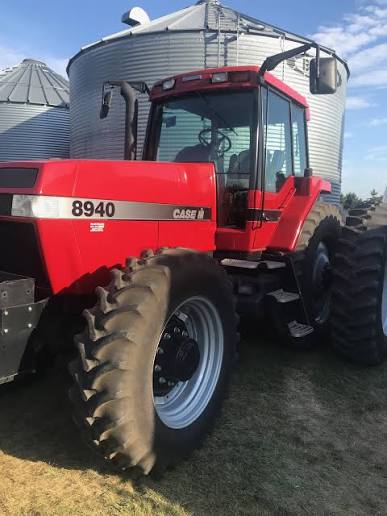

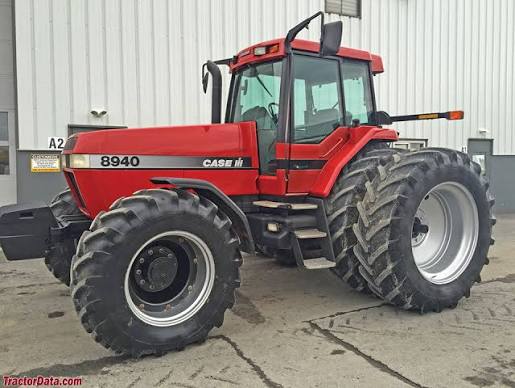

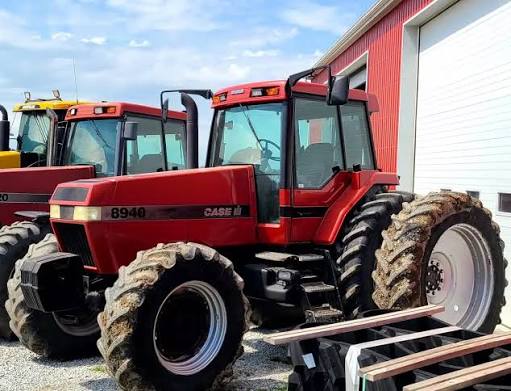

Case IH 8940 Tractor
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,168 lb
Fuel Capacity45.5 gal
Alternator Supplied Amperage110 A
Operating Voltage12 V
Tire Size Front - 2wd / 4wd14L-16.1
Cooling System Fluid Capacity7.8 gal
Hydraulic System Fluid Capacity45.5 gal
Engine Oil Capacity5.5 gal

Engine

Engine specifications
Displacement507 in³
Power Measured @2,200 rpm
Gross Power227.0 hp
Number of Cylinders6
PTO Power205.0 hp
Bore5 in
Stroke5 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.0 gal/min
Number of Remote Control Valves—
Relief Valve Pressure2,200 psi

Dimensions

Dimensions specifications
Wheelbase119 in
Front Axle Clearance23 in

Transmission

Transmission specifications
Number of Forward Gears18
Transmission TypeFull power shift
Number of Reverse Gears4

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size18.4R-42

Production

Production specifications
SeriesMagnum 8900 Series
Years Manufactured1,997 – 1,998
