Case IH

SR130

Skid Steer Loader

All skid steer loaders

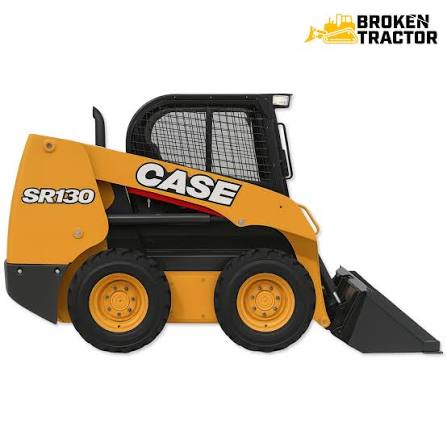

Case IH SR130 Skid Steer Loader
1 / 5
Image 1 of 5
Image: motorbazee.com

Specifications

16 data points

Engine

Engine specifications
Engine ModelISM N844L-F
Displacement135 in³
Emissions CertificationTier 4 Final (DOC DPF)
Engine peak torque106 lb-ft

Weights

Weights specifications
Operating Weight5,071 lb

Hydraulic System

Hydraulic System specifications
Auxiliary hydraulic flow17.5 gal/min

Dimensions

Dimensions specifications
Width Over Tires60 in
Height - Top of ROPS/FOPS76 in
Overall length (W/bucket)126 in
Dump height - fully raised, 45 degrees dump85 in
Bucket hinge pin fully raised113 in

Fluid Capacities

Fluid Capacities specifications
Rated Operating Capacity1,301 lb

Bucket

Bucket specifications
Breakout Force4,182 lb

Loader

Loader specifications
Operating Load Rating1,301 lb
Tipping Angle2,599 °

Lift System

Lift System specifications
Lift ConfigurationRadial
