Case
Caterpillar
252
Skid Steer Loader
54 specifications
1 / 5

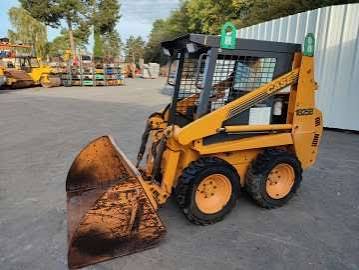

Image 1 of 5
Specifications
33 data points
Engine
| Engine Model | V1505 |
|---|---|
| Displacement | 92 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 27.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 2,100 rpm |
| Max Torque | 67 lb-ft |
| Engine Make | Kubota |
| Stroke | 3 in |
| Bore | 3 in |
Dimensions
| Ground Clearance | 7 in |
|---|---|
| Wheelbase | 33 in |
| Width Over Tires | 40 in |
| Height - Top of ROPS/FOPS | 70 in |
| Length w/o Bucket | 109 in |
| Angle of departure | 31 ° |
| Hinge pin height - fully raised | 98 in |
Loader
| Operating Load Rating | 884 lb |
|---|---|
| Bucket Width | 49 in |
Hydraulic
| Pump Flow Capacity | 9.6 gal/min |
|---|---|
| Relief Valve Pressure | 2,300 psi |
| Pump Type | Gear pump driven directl |
| Dump Time | 1.2 s |
| Lower Time | 2.5 s |
Operational
| Operating Weight | 3,106 lb |
|---|---|
| Max Speed | 5.8 mph |
| Fuel Capacity | 8.6 gal |
| Hydraulic System Fluid Capacity | 5.8 gal |
| Operating Voltage | 12 V |
| Tire Size | 5.70 x 15 4PR |
| Alternator Supplied Amperage | 30 A |
| Chain Box Fluid Capacity - each side | 0.8 gal |
| Engine Oil Fluid Capacity | 1.7 gal |
