Thomas

105

Skid Steer Loader

Operating Weight
3,700 lb
Bucket Capacity
0.41 yd³
Gross Power
33.0 hp
All skid steer loaders

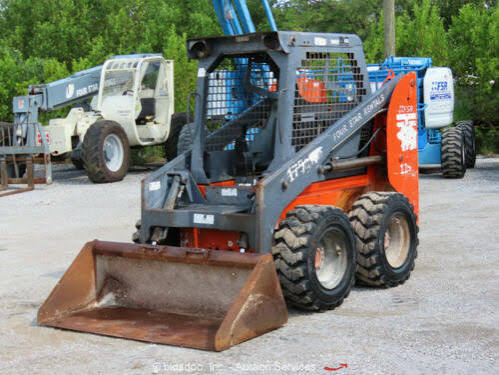

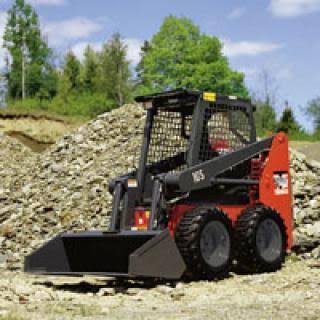

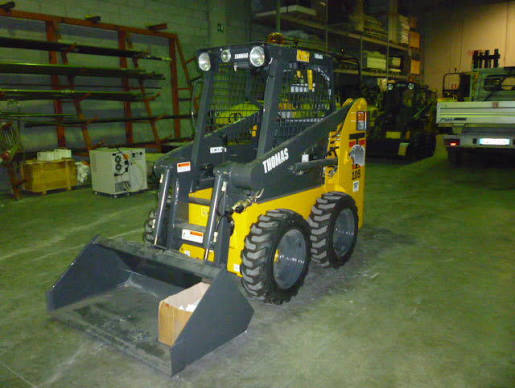

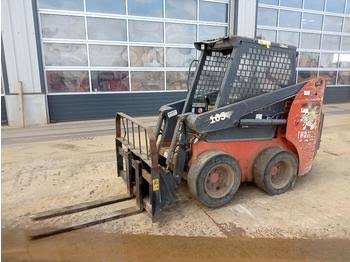

Thomas 105 Skid Steer Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,700 lb
Fuel Capacity11.3 gal
Hydraulic System Fluid Capacity9.0 gal
Operating Voltage12 V
Alternator Supplied Amperage60 A

Engine

Engine specifications
Engine ModelV1305B
Displacement82 in³
Power Measured @3,000 rpm
Gross Power33.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity8.7 gal/min
Relief Valve Pressure2,150 psi
Pump TypeHydrostatic

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab72 in
Wheelbase33 in
Width Over Tires52 in
Reach at Max Lift and Dump24 in
Length with Bucket115 in
Clearance at Max Lift and Dump83 in
Turning Radius from Center - inc bucket67 in
Turning Radius from Center - machine rear54 in
Length w/o Bucket91 in

Loader

Loader specifications
Bucket Capacity0.41 yd³
Operating Load Rating1,000 lb
Tipping Angle2,000 °
Breakout Force1,750 psi
