Case IH

SR160

Skid Steer Loader

All skid steer loaders

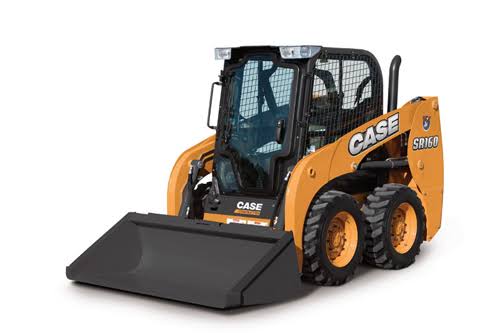

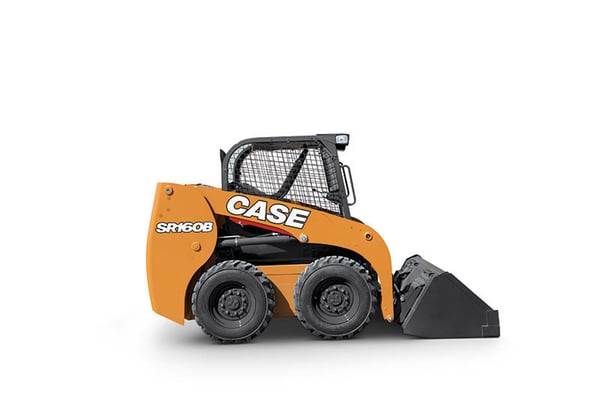

Case IH SR160 Skid Steer Loader
1 / 5
Image 1 of 5
Image: binghamequipment.com

Specifications

15 data points

Engine

Engine specifications
Engine ModelISM N844LT-F
Displacement135 in³
Emissions CertificationTier 4 Final (CEGR DOC DPF)
Engine peak torque139 lb-ft

Weights

Weights specifications
Operating Weight5,523 lb

Hydraulic System

Hydraulic System specifications
Auxiliary hydraulic flow18.4 gal/min

Dimensions

Dimensions specifications
Width Over Tires60 in
Height - Top of ROPS/FOPS76 in
Overall length (W/bucket)126 in
Dump height - fully raised, 45 degrees dump85 in
Bucket hinge pin fully raised113 in

Fluid Capacities

Fluid Capacities specifications
Rated Operating Capacity1,601 lb

Bucket

Bucket specifications
Breakout Force5,463 lb

Loader

Loader specifications
Tipping Angle3,208 °

Lift System

Lift System specifications
Lift ConfigurationRadial
