Case

1102

Smooth Drum Roller

Operating Weight
23,590 lb
All smooth drum rollers

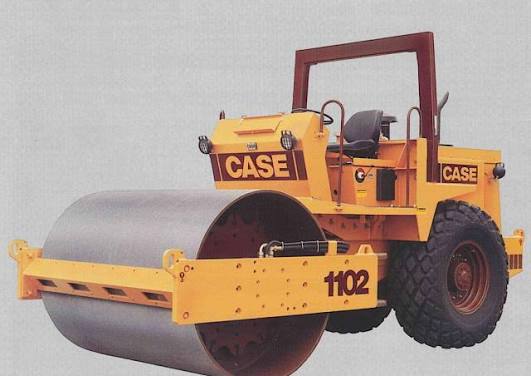

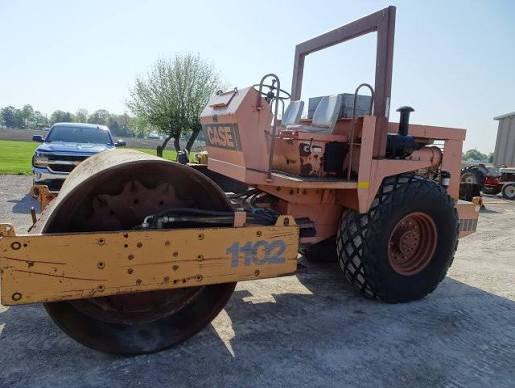

Case 1102 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: rbauction.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,590 lb
Fuel Capacity74.0 gal
Hydraulic System Fluid Capacity18.5 gal
Engine Oil Capacity3.2 gal

Engine

Engine specifications
Engine ModelF 5 L 912
Displacement287 in³
Power Measured @2,500 rpm
Net Power99.0 hp
Number of Cylinders5
Engine MakeDuetz

Dimensions

Dimensions specifications
Ground Clearance21 in
Height - Top of Cab119 in
Wheelbase112 in
Overall Length205 in
Overall Width91 in

Drum

Drum specifications
Nominal Amplitude - High0 in
Centrifugal Force - High3,942,924 lb
Drum thickness1 in
