Case

325

Off-Highway Truck

Operating Weight
91,822 lb
Max Speed
29.6 mph
Gross Power
260.0 hp
Net Power
248.0 hp
All off-highway trucks

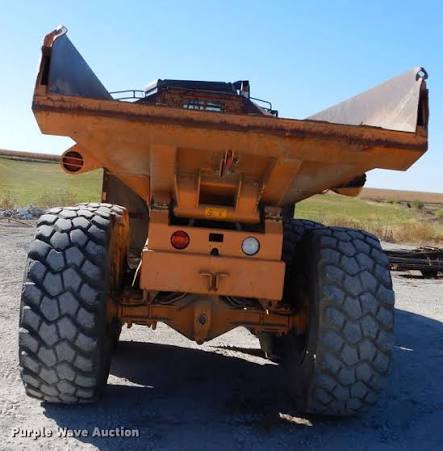

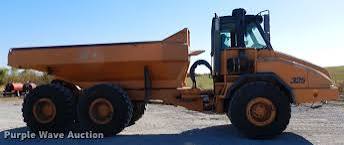

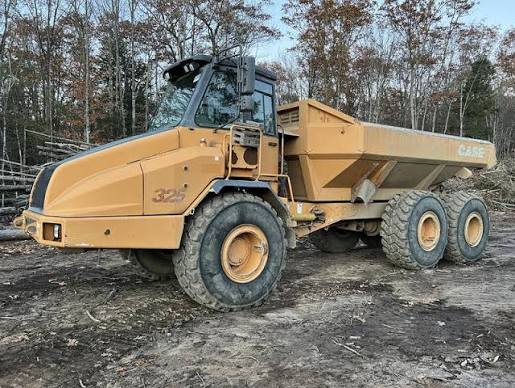

Case 325 Off-Highway Truck
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity86.0 gal
Tire Sizetubeless 23.5xR25
Engine Oil Capacity5.8 gal
Hydraulic System Fluid Capacity52.8 gal
Operating Voltage24 V
Alternator Supplied Amperage70 A
Transmission Fluid Capacity6.9 gal

Engine

Engine specifications
Engine Model6CTAA-8.3
Displacement506 in³
Power Measured @2,200 rpm
Gross Power260.0 hp
Net Power248.0 hp
Number of Cylinders6
AspirationTurbocharged and Aftercooled
Torque Measured @1,400 rpm
Max Torque828 lb-ft
MakeCummins

Weights

Weights specifications
Operating Weight91,822 lb
Total Empty41,116 lb
Front Axle - empty20,172 lb
Total Loaded91,822 lb
Rear Axle - empty20,944 lb

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase238 in
Overall Length388 in
Overall Width110 in
Overall Height144 in
Dump Height254 in
Dump Ground Clearance35 in

Transmission

Transmission specifications
Max Speed29.6 mph
Transmission TypePower Shift
Number of Forward Gears6
Number of Reverse Gears3

Drive System

Drive System specifications
Drive Config6x6

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload50,706 lb
Dump Angle67 °
Raise Time14.0 s
Lower Time16.0 s
Capacity - Heaped17.40 yd³
Capacity - Struck13.90 yd³
