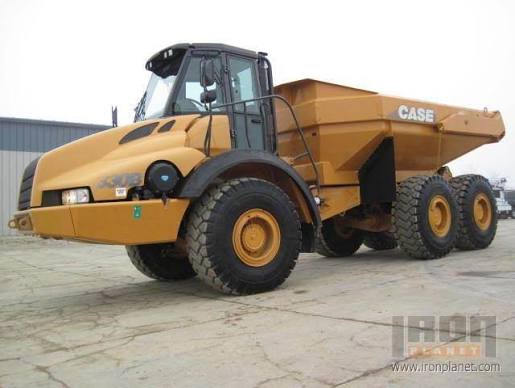

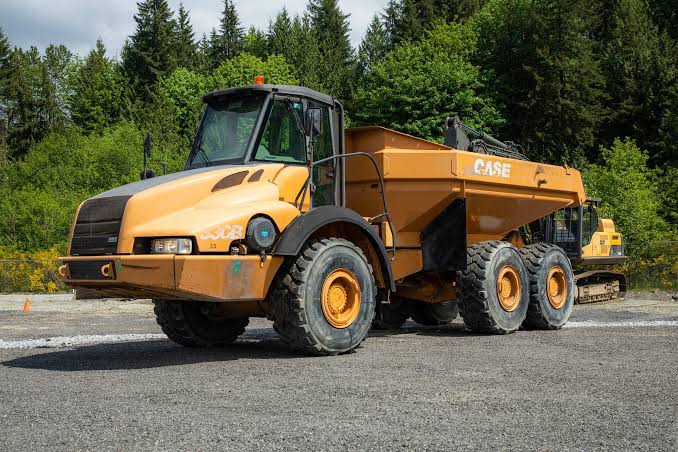

Case
Terex
TA27
Off-Highway Truck
46 specifications
1 / 5
Image 1 of 5
Specifications
50 data points
Operating Specifications
| Fuel Capacity | 100.0 gal |
|---|---|
| Tire Size | Tubeless 23.5 R25 |
| Engine Oil Capacity | 8.0 gal |
| Hydraulic System Fluid Capacity | 58.1 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Transmission Fluid Capacity | 10.0 gal |
Engine
| Engine Model | Cat 3306TA |
|---|---|
| Displacement | 64 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 349.0 hp |
| Net Power | 334.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged with Aftercooler |
| Torque Measured @ | 1,140 rpm |
| Max Torque | 1,217 lb-ft |
| Make | Case |
| Stroke | 6 in |
| Bore | 5 in |
| Net Power - ISO 9249 | 221.0 hp |
| Net Power - SAE J1349 | 219.0 hp |
| Net Power - EEC 80/1269 | 221.0 hp |
Weights
| Operating Weight | 111,840 lb |
|---|---|
| Total Empty | 49,758 lb |
| Front Axle - empty | 26,455 lb |
| Total Loaded | 111,840 lb |
| Rear Axle - empty | 23,303 lb |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Wheelbase | 233 in |
| Overall Length | 396 in |
| Overall Width | 118 in |
| Overall Height | 144 in |
| Dump Height | 248 in |
| Dump Ground Clearance | 40 in |
Transmission
| Max Speed | 28.8 mph |
|---|---|
| Transmission Type | Powershift |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 3 |
Drive System
| Drive Config | 6x6 |
|---|
Service Refill Capacities
| Cooling System | 11.9 gal |
|---|---|
| Final Drive - Each | 4.0 gal |
| Swing Drive | 4.0 gal |
Articulating/Rigid
| Articulating/Rigid | Articulated |
|---|
Dump
| Rated Payload | 62,082 lb |
|---|---|
| Dump Angle | 68 ° |
| Raise Time | 13.0 s |
| Lower Time | 13.0 s |
| Capacity - Heaped | 22.99 yd³ |
| Capacity - Struck | 17.80 yd³ |
Standards
| Brakes | SAE J1026 APR90 |
|---|
