Case

480B

Backhoe Loader

Max Speed
17.0 mph
Gross Power
41.5 hp
Net Power
37.0 hp
All backhoe loaders

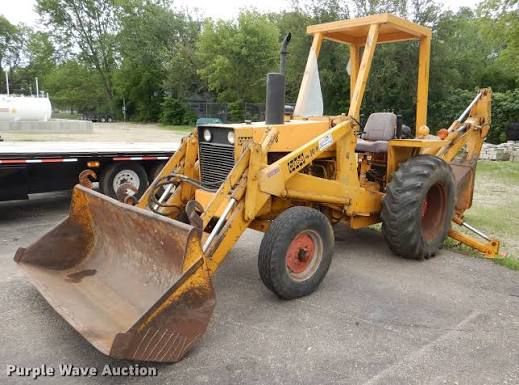

Case 480B Backhoe Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity22.0 gal
Hydraulic System Fluid Capacity12.0 gal
Cooling System Fluid Capacity4.2 gal
Tire Size Front - 2wd / 4wd7.50x16
Operating Voltage12 V
Oil System Fluid Capacity1.1 gal
Alternator Supplied Amperage55 A
Max Weight8,950 lb
Axle load - front8,500 lb

Engine

Engine specifications
Engine ModelG188D
Displacement189 in³
Power Measured @1,750 rpm
Gross Power41.5 hp
Net Power37.0 hp
Number of Cylinders4
Torque Measured @1,250 rpm
Engine MakeJ.I. Case
Stroke4 in
Bore4 in
Net Max Torque133 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity10.0 gal/min
Pump TypeOpen center

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase79 in
Transport Width62 in
Transport Length119 in
Rear Tread Range64 in
Shipping weight3,624 lb

Transmission

Transmission specifications
Max Speed17.0 mph
Max Speed - Reverse21.1 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission TypeMechanical shuttle

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size14.9x24

Backhoe

Backhoe specifications
Dig Depth149 in
Reach From Swivel185 in
Dig Depth - Extended187 in
Load Height - Extended133 in
Bucket Dig Force6,870 lb
Reach From Swivel - Extended220 in
Load Height109 in
Bucket Dig Force - Extended5,900 lb

Loader

Loader specifications
Clearance at Max Dump Height106 in
Bucket Breakout Force5,500 lb
Reach at Max Dump Height25 in
