Case

480E

Backhoe Loader

Max Speed
20.9 mph
Gross Power
69.0 hp
Net Power
63.0 hp
All backhoe loaders

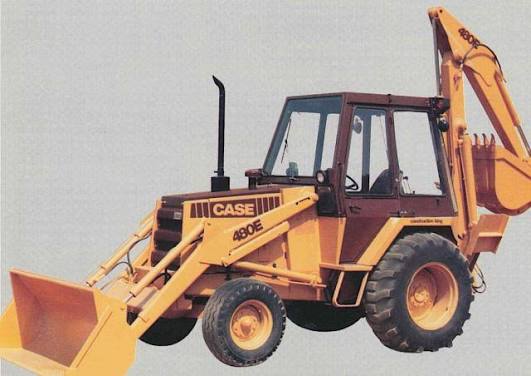

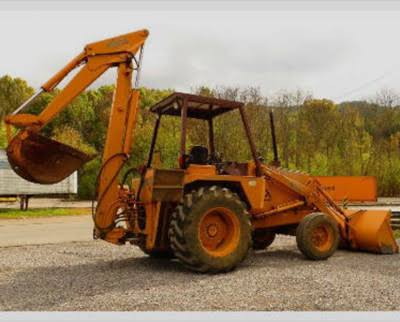

Case 480E Backhoe Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Tire Size Front - 2wd / 4wd7.50x16
Operating Voltage12 V
Alternator Supplied Amperage65 A
Max Weight10,904 lb

Engine

Engine specifications
Engine Model4-390
Displacement238 in³
Power Measured @2,200 rpm
Gross Power69.0 hp
Net Power63.0 hp
Number of Cylinders4
Torque Measured @1,200 rpm
Engine MakeJ.I. Case
Stroke5 in
Bore4 in
Net Max Torque186 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity23.0 gal/min
Relief Valve Pressure2,350 psi
Pump TypeOpen center

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase80 in
Transport Width88 in
Transport Length257 in
Height to Top of Suspended Cab101 in
Rear Tread Range66 in
Front Wheel Tread Width67 in

Transmission

Transmission specifications
Max Speed20.9 mph
Max Speed - Reverse18.3 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission TypePower shuttle

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size14.9x24

Backhoe

Backhoe specifications
Dig Depth145 in
Reach From Swivel190 in
Dig Depth - Extended182 in
Load Height - Extended104 in
Bucket Dig Force8,115 lb
Reach From Swivel - Extended224 in
Load Height101 in
Bucket Dig Force - Extended8,274 lb

Loader

Loader specifications
Clearance at Max Dump Height103 in
Bucket Breakout Force6,340 lb
Reach at Max Dump Height28 in
