Yanmar

CBL40

Backhoe Loader

Max Speed
13.7 mph
Gross Power
37.2 hp
Net Power
35.4 hp
All backhoe loaders

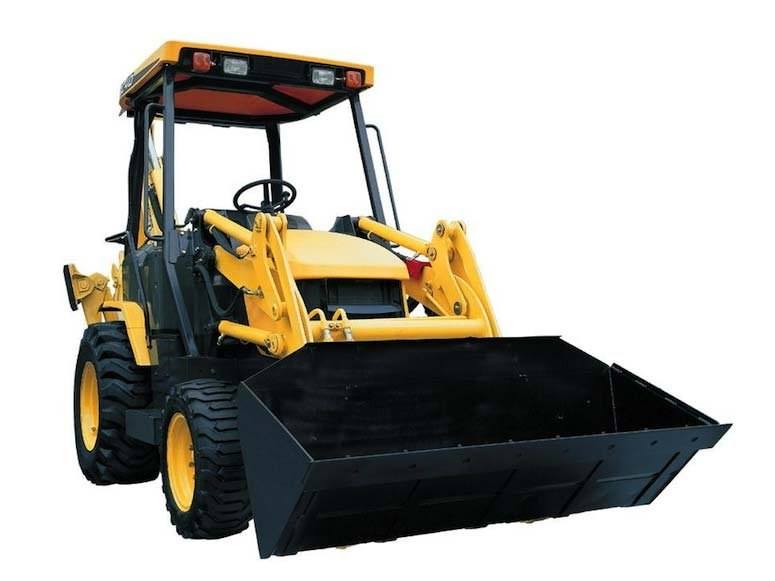

Yanmar CBL40 Backhoe Loader
1 / 5
Image 1 of 5
Image: seoffroad.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity16.4 gal
Tire Size Front - 2wd / 4wd27x10.5-15
Turning Radius101 in
Max Weight7,750 lb

Engine

Engine specifications
Gross Power37.2 hp
Net Power35.4 hp
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity11.1 gal/min
Relief Valve Pressure3,000 psi
Pump Type2x piston

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase70 in
Transport Width71 in
Transport Length235 in

Transmission

Transmission specifications
Max Speed13.7 mph
Max Speed - Reverse13.7 mph
Number of Forward Gears2
Number of Reverse Gears2
Transmission TypeMechanically controlled load sensing HMT

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size15-19.5

Backhoe

Backhoe specifications
Dig Depth121 in
Reach From Swivel158 in
Load Height102 in

Loader

Loader specifications
Clearance at Max Dump Height88 in
Reach at Max Dump Height24 in
