John Deere

110

Backhoe Loader

Gross Power
43.0 hp
Net Power
41.0 hp
All backhoe loaders

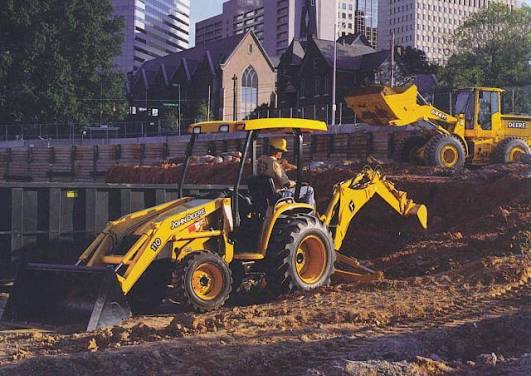

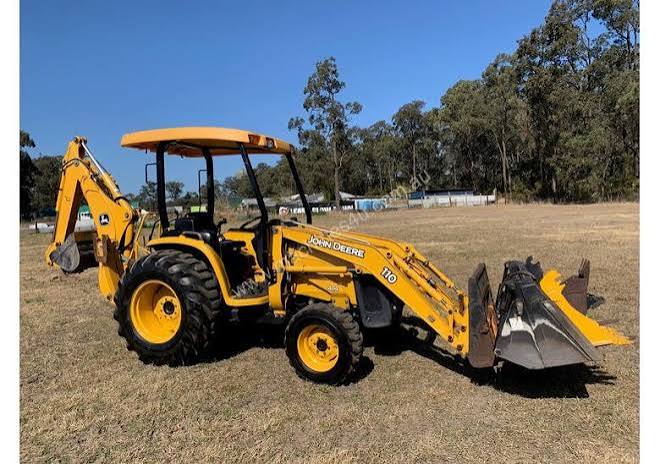

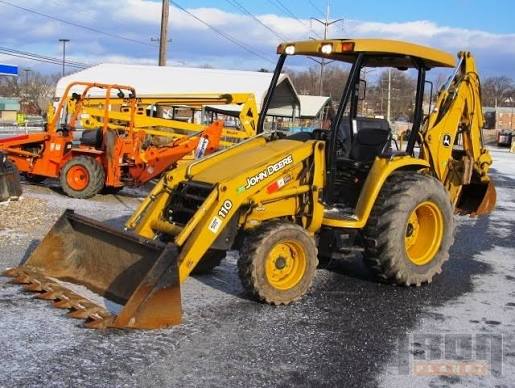

John Deere 110 Backhoe Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity15.4 gal
Hydraulic System Fluid Capacity15.1 gal
Cooling System Fluid Capacity2.4 gal
Tire Size Front - 2wd / 4wd10 x 16.5 8 PR
Operating Voltage12 V
Oil System Fluid Capacity1.3 gal
Alternator Supplied Amperage55 A
Turning Radius142 in
Transmission Fluid Capacity15.1 gal
Max Weight7,280 lb
Front Axle Fluid Capacity1.3 gal

Engine

Engine specifications
Engine ModelTNV88
Displacement134 in³
Power Measured @2,600 rpm
Gross Power43.0 hp
Net Power41.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity23.6 gal/min
Relief Valve Pressure3,000 psi
Pump TypeOpen Center

Dimensions

Dimensions specifications
Wheelbase72 in

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size17.5L x 24 8 PR

Backhoe

Backhoe specifications
Dig Depth121 in
Load Height102 in

Loader

Loader specifications
Bucket Width72 in
