Case

480F

Skip Loader

Bucket Capacity
0.10 yd³
Gross Power
69.0 hp
Net Power
63.0 hp
All skip loaders

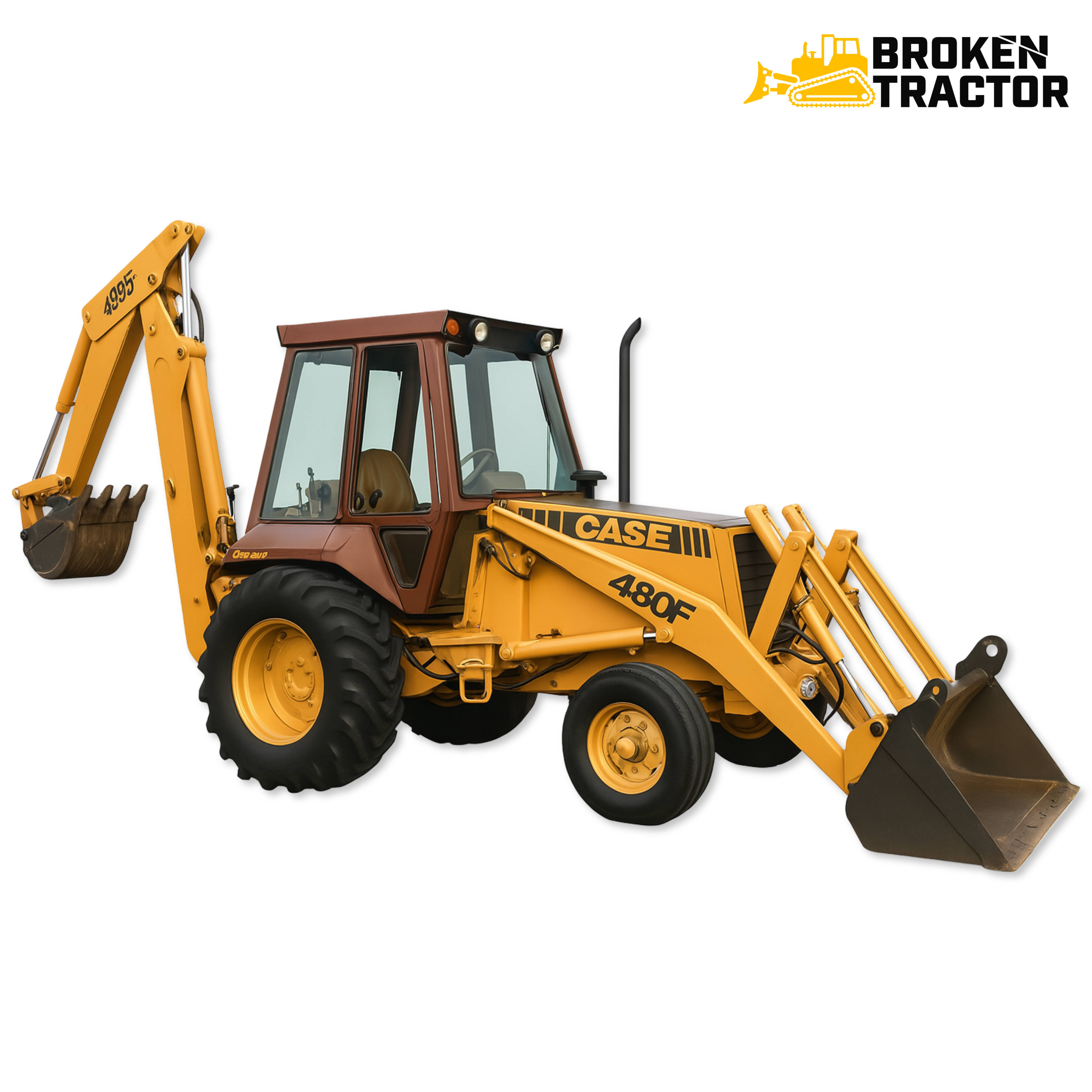

Case 480F Skip Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity26.5 gal
Hydraulic System Fluid Capacity10.8 gal
Operating Voltage12 V
Oil System Fluid Capacity3.0 gal
Alternator Supplied Amperage65 A
Cooling System Fluid Capacity4.5 gal
Tire Size Front - 2wd / 4wd11L x 16
Max Weight10,932 lb
Transmission Fluid Capacity4.8 gal

Engine

Engine specifications
Engine Model4-390
Displacement239 in³
Power Measured @2,200 rpm
Gross Power69.0 hp
Net Power63.0 hp
Number of Cylinders4
Torque Measured @1,200 rpm
Engine MakeCase
Bore4 in
Stroke5 in
Net Max Torque186 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity23.9 gal/min
Relief Valve Pressure2,450 psi
Pump TypeOpen center

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase80 in
Transport Width81 in
Transport Length256 in
Height to Top of Suspended Cab101 in
Rear Tread Range62 in
Front Wheel Tread Width62 in

Transmission

Transmission specifications
Max Speed21.9 mph
Max Speed - Reverse19.1 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission TypePower shuttle

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size17.5L x 24

Backhoe

Backhoe specifications
Dig Depth145 in
Bucket Dig Force8,116 lb
Reach From Swivel190 in
Bucket Dig Force - Extended8,116 lb
Dig Depth - Extended169 in
Load Height - Extended121 in
Load Height102 in
Reach From Swivel - Extended212 in
Reach at Load Height - Extended104 in

Loader

Loader specifications
Bucket Capacity0.10 yd³
Reach at Max Dump Height24 in
Bucket Breakout Force8,330 lb
Bucket Width12 in
Clearance at Max Dump Height106 in
Dig Depth4 in
