570N EP
Skip Loader
36 specifications
1 / 5

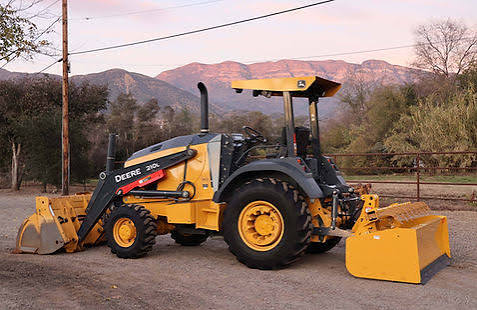

Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight 4wd | 10,500 lb |
|---|---|
| Operating Weight 2wd | 10,500 lb |
| Fuel Capacity | 23.0 gal |
| Hydraulic System Fluid Capacity | 16.0 gal |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 2.3 gal |
| Alternator Supplied Amperage | 51 A |
| Cooling System Fluid Capacity | 4.3 gal |
| Tire Size Front - 2wd / 4wd | 7.50-1610PRF3;11L-158PRI-1A/12.00-16.58PRR4 |
| Max Weight | 10,500 lb |
| Transmission Fluid Capacity | 1.9 gal |
| Turning Radius | 113 in |
Engine
| Engine Model | 4-239D |
|---|---|
| Displacement | 239 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 58.0 hp |
| Net Power | 55.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Naturally aspirated |
| Torque Measured @ | 1,200 rpm |
| Net Max Torque | 158 lb-ft |
| Net Torque Rise | 0 |
Hydraulic System
| Pump Flow Capacity | 24.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,500 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Wheelbase | 83 in |
| Transport Width | 91 in |
| Transport Length | 276 in |
| Height to Top of Suspended Cab | 102 in |
Transmission
| Max Speed | 22.4 mph |
|---|---|
| Max Speed - Reverse | 22.3 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | Manual shift |
Tires & Wheels
| Rear Tires Size | 14.9-246PRR4;16.9-246PRR3;17.5L-248PRR4/16.9-248PRR4 |
|---|
Backhoe
| Dig Depth | 166 in |
|---|---|
| Bucket Dig Force | 9,600 lb |
| Reach From Swivel | 207 in |
| Bucket Dig Force - Extended | 9,600 lb |
| Dig Depth - Extended | 212 in |
| Load Height - Extended | 149 in |
| Load Height | 126 in |
| Reach From Swivel - Extended | 251 in |
Loader
| Bucket Capacity | 0.99 yd³ |
|---|---|
| Reach at Max Dump Height | 30 in |
| Bucket Breakout Force | 6,800 lb |
| Bucket Width | 89 in |
| Dig Depth | 1 in |
