Case
Ingersoll Rand
BL570
Backhoe Loader
30 specifications
1 / 5

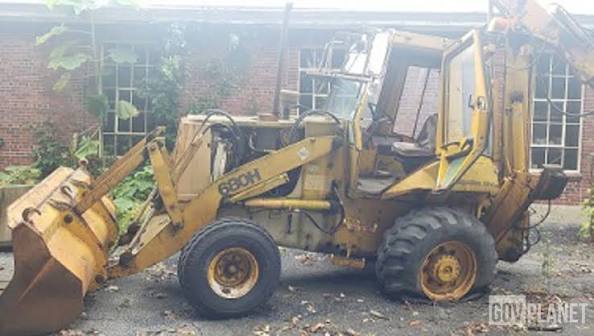

Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight 2wd | 15,855 lb |
|---|---|
| Fuel Capacity | 33.0 gal |
| Hydraulic System Fluid Capacity | 13.8 gal |
| Cooling System Fluid Capacity | 9.1 gal |
| Operating Voltage | 24 V |
| Oil System Fluid Capacity | 4.0 gal |
| Alternator Supplied Amperage | 40 A |
| Turning Radius | 235 in |
| Transmission Fluid Capacity | 4.0 gal |
| Rear Axle Fluid Capacity | 2.1 gal |
Engine
| Engine Model | A336BD |
|---|---|
| Displacement | 336 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 87.0 hp |
| Net Power | 80.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,500 rpm |
| Net Max Torque | 236 lb-ft |
Hydraulic System
| Pump Flow Capacity | 26.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,550 psi |
Dimensions
| Wheelbase | 88 in |
|---|---|
| Transport Width | 91 in |
| Transport Length | 274 in |
| Height to Top of Suspended Cab | 115 in |
Transmission
| Max Speed | 19.3 mph |
|---|---|
| Max Speed - Reverse | 19.3 mph |
Tires & Wheels
| Rear Tires Size | 16.9x24 R4 |
|---|
Backhoe
| Dig Depth | 199 in |
|---|---|
| Reach From Swivel | 239 in |
| Dig Depth - Extended | 247 in |
| Load Height - Extended | 168 in |
| Reach From Swivel - Extended | 289 in |
| Reach at Load Height - Extended | 144 in |
Loader
| Bucket Capacity | 1.60 yd³ |
|---|---|
| Clearance at Max Dump Height | 114 in |
| Bucket Width | 96 in |
| Reach at Max Dump Height | 31 in |
| Dig Depth | 3 in |
