Case

865B

Motor Grader

Max Operation Weight - Total
33,797 lb
Max Power
220.0 hp
All motor graders

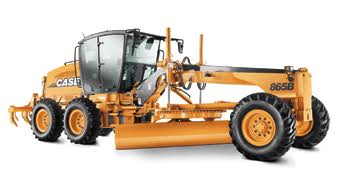

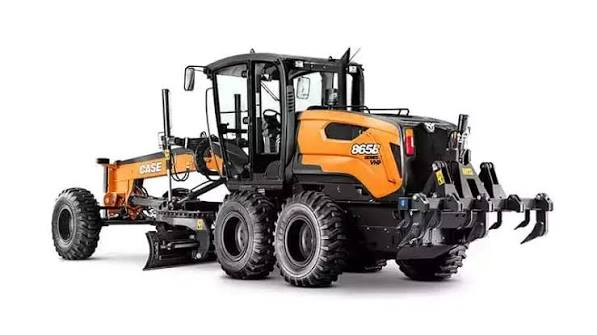

Case 865B Motor Grader
1 / 5
Image 1 of 5
Image: aleanda.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Max Operation Weight - Total33,797 lb
Tire Size610 mm

Engine

Engine specifications
Engine ModelF4HE9687C
Displacement409 in³
Torque686 lb-ft
Max Power220.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow49.2 gal/min

Dimensions

Dimensions specifications
Wheelbase246 in
Overall Length336 in
Height to Top of Isomount Cab125 in
Blade Base102 in
Tandem Axle Wheelbase64 in
Wheel base to center of tandem32 in

Transmission

Transmission specifications
Max Speed - Forward27.9 mph
Number of Gears - Forward8
Number of Gears - Reverse4

Moldboard

Moldboard specifications
Moldboard Height24 in
Moldboard Thickness1 in
Blade Down Pressure18,519 lb
Moldboard Length168 in
